CONDENSER REMOVAL/INSTALLATION

id092000803000

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(2)  Trunk end trim (LH) (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(3)  Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(5)  D-pillar trim (LH) (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

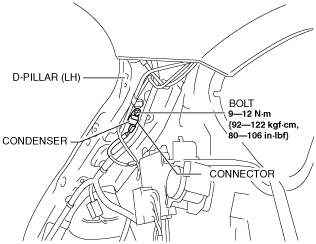

ac5jjw00000172

4.  Remove the bolts.

5.  Remove the condenser.

6.  Install in the reverse order of removal. (See Condenser Installation Note.)

Condenser Installation Note

•  Align with the D-pillar position and install the condenser.

ac5wzw00005157
