COMPRESSOR BYPASS SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0113z7265600

Fuel injector (2pin type)

Caution

•  If the vacuum hose is installed incorrectly, it could cause a vehicle malfunction. To prevent this, refer to “VACUUM HOSE STRUCTURAL VIEW” and install the vacuum hose correctly. (See Vacuum hose structural view.)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the battery and the battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Remove in the order shown in the figure.

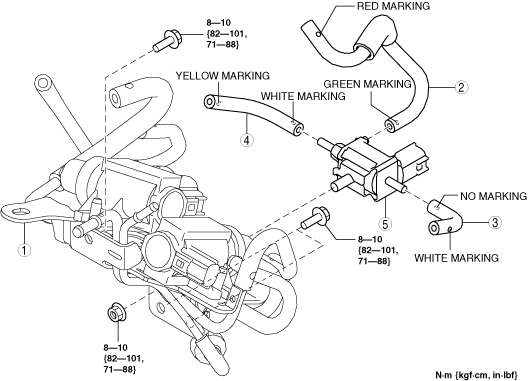

ATX

ac5wzw00004659

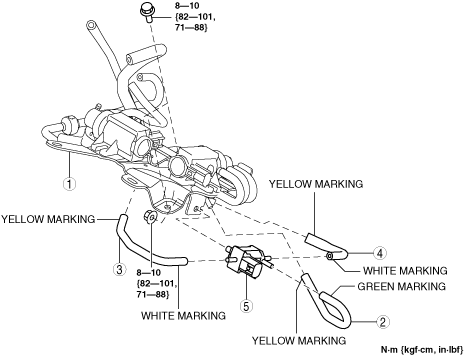

MTX

ac5wzw00004660

1	Vacuum pipe bracket
2	Vacuum hose No.1 (See Vacuum Hose No.1 Installation Note.)
3	Vacuum hose No.2 (See Vacuum Hose No.2 Installation Note.)
4	Vacuum hose No.3 (See Vacuum Hose No.3 Installation Note.)
5	Compressor bypass solenoid valve

4.  Install in the reverse order of removal.

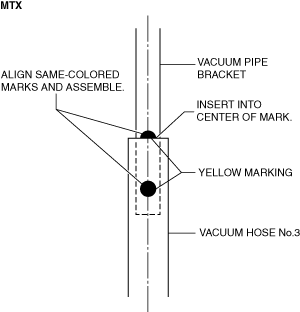

Vacuum Hose No.3 Installation Note

1.  Install vacuum hose No.3 as shown in the figure.

Compressor bypass solenoid valve side

ac5wzw00008591

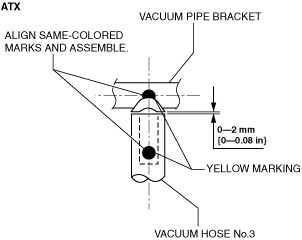

Vacuum pipe bracket side

ac5wzw00008592

ac5wzw00008593

Vacuum Hose No.2 Installation Note

1.  Install vacuum hose No.2 as shown in the figure.

Compressor bypass solenoid valve side

ac5wzw00008594

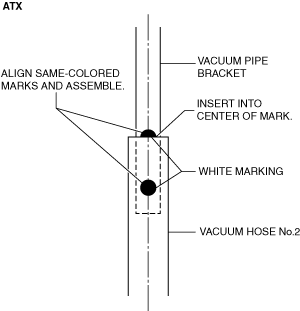

Vacuum pipe bracket side

ac5wzw00008595

ac5wzw00008596

Vacuum Hose No.1 Installation Note

1.  Install vacuum hose No.1 as shown in the figure.

Compressor bypass solenoid valve side

ac5wzw00008597

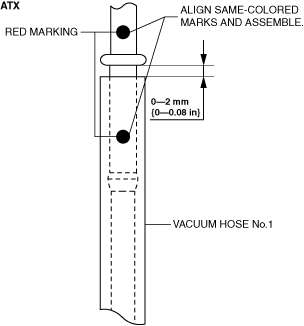

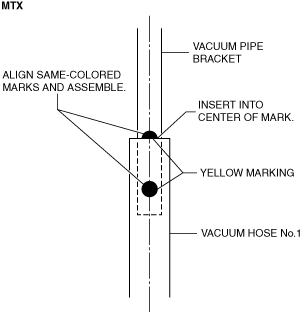

Compressor bypass valve actuator side

ac5wzw00008598

ac5wzw00008599

Vacuum hose structural view

1.  Verify that the vacuum hose is installed correctly as shown in the figure.

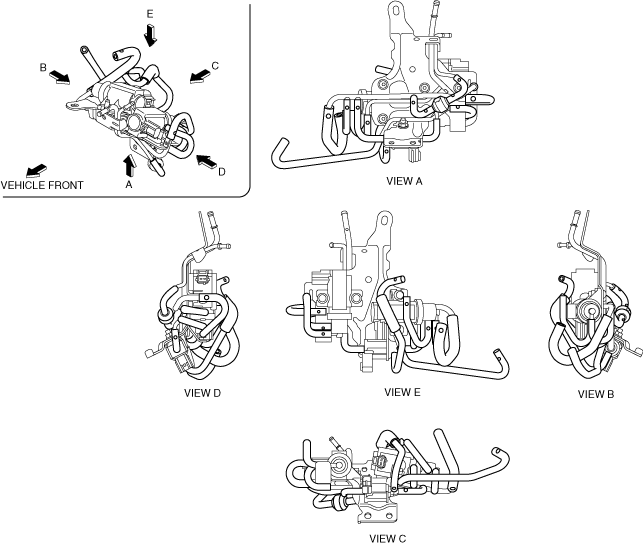

Whole figure (ATX)

ac5wzw00005336

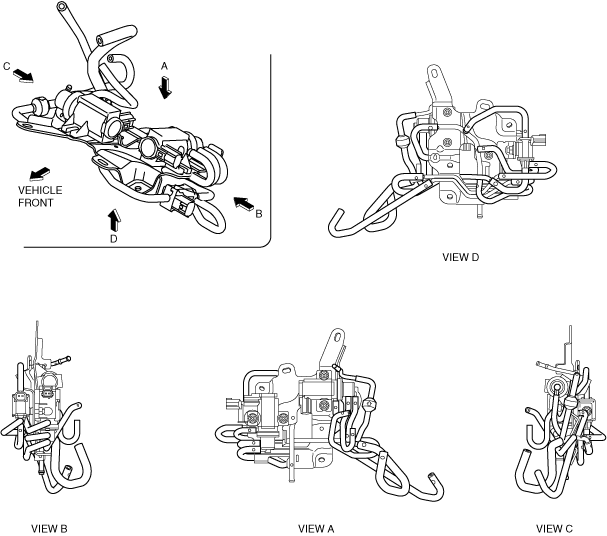

Whole figure (MTX)

ac5wzw00005337

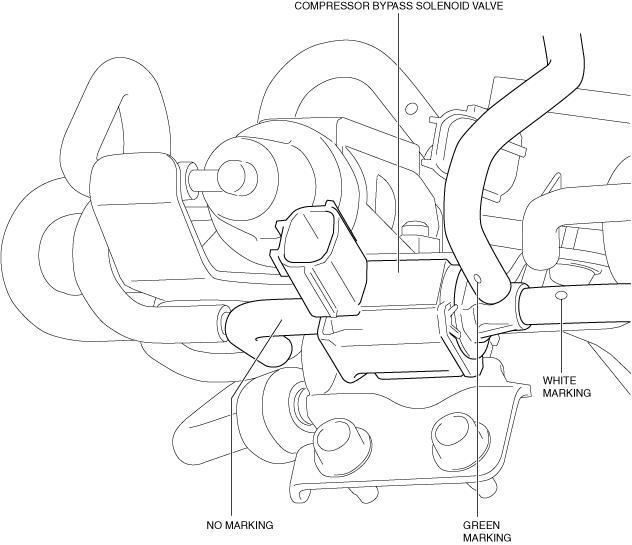

Compressor bypass solenoid valve side (ATX)

ac5wzw00004671

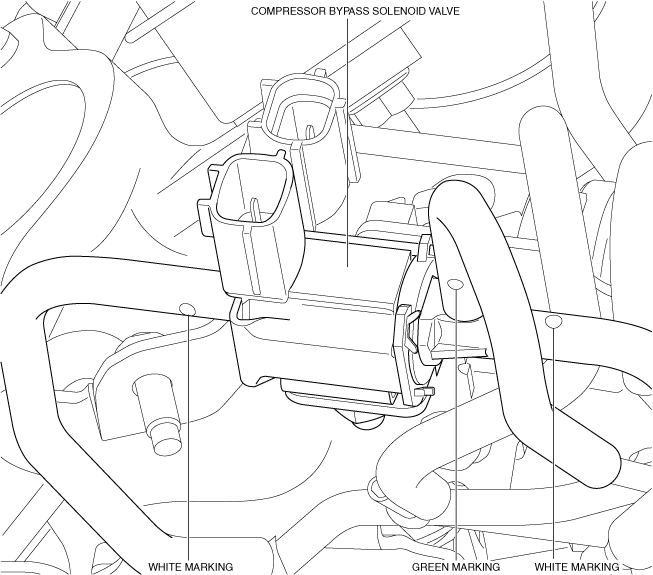

Compressor bypass solenoid valve side (MTX)

ac5wzw00004672

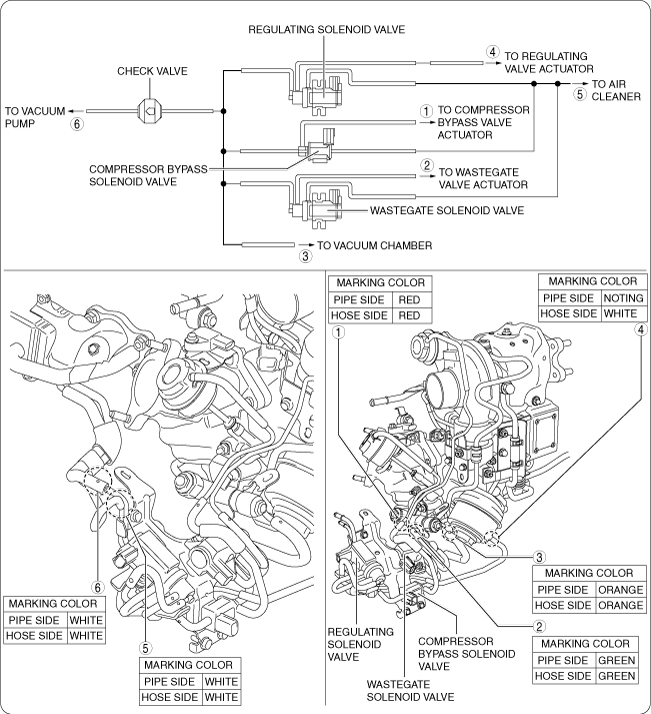

Vacuum pipe bracket side (ATX)

ac5wzw00004673

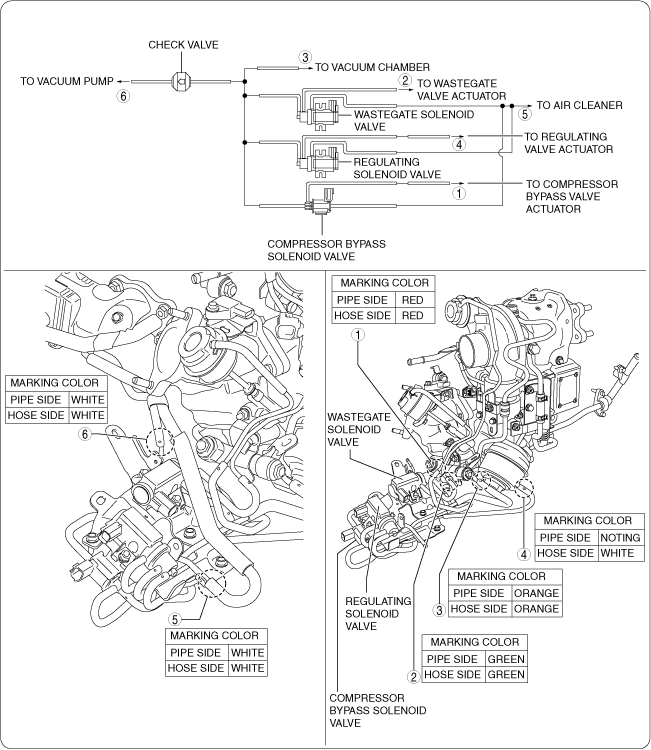

Vacuum pipe bracket side (MTX)

ac5wzw00004674

Fuel injector (6pin type)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION)

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

3.  Remove the air hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

4.  Remove in the order shown in the figure.

ac5wzw00011971

1	Compressor bypass solenoid valve connector
2	Vacuum hose No.1 (See Vacuum Hose No.1 Installation Note)
3	Vacuum hose No.3 (See Vacuum Hose No.3 Installation Note)
4	Compressor bypass solenoid valve bracket bolt
5	Vacuum hose No.4 (See Vacuum Hose No.4 Installation Note)
6	Vacuum pipe bracket
7	Compressor bypass solenoid valve

5.  Install in the reverse order of removal.

Vacuum Hose No.4 Installation Note

1.  Install vacuum hose No.4 as shown in the figure.

Compressor bypass solenoid valve side

ac5wzw00011972

Vacuum pipe bracket side

ac5wzw00011973

Vacuum Hose No.3 Installation Note

1.  Install vacuum hose No.3 as shown in the figure.

ac5wzw00011974

Vacuum Hose No.1 Installation Note

1.  Install vacuum hose No.1 as shown in the figure.

ac5wzw00011975
