FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0114q4806900

Warning

•  Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the “Fuel Line Safety Procedure” to prevent the fuel from spraying.

―  Fuel may cause irritation if it comes in contact with skin and eyes.

―  If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.

•  A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before draining fuel, make sure to discharge static electricity by touching the vehicle body.

1.  Level the vehicle.

2.  Complete the “BEFORE SERVICE PRECAUTION”. (See BEFORE SERVICE PRECAUTION [SKYACTIV-G 2.5T].)

3.  Drain the fuel. (See FUEL DRAINING PROCEDURE [SKYACTIV-G 2.5T].)

4.  Open the fuel-filler lid.

5.  Remove the rear wheel and tire (LH). (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

6.  Remove the rear mudguard (LH). (See MUDGUARD REMOVAL/INSTALLATION.)

7.  Remove the floor under cover No.2 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

8.  Remove in the order indicated in the table.

9.  Install in the reverse order of removal.

10.  Complete the “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [SKYACTIV-G 2.5T].)

ac5uuw00010551

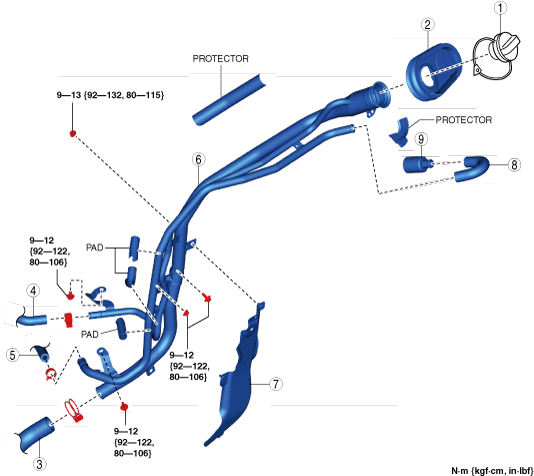

1	Fuel-filler cap
2	Dust cover (See Dust Cover Removal Note.)
3	Joint hose (See Joint Hose Installation Note.)
4	Breather hose (See Breather Hose Installation Note.)
5	Evaporative hose No.1 (See Evaporative Hose No.1 Installation Note.)
6	Fuel-filler pipe (See Fuel-filler Pipe Installation Note.)
7	Fuel-filler pipe protector
8	Evaporative hose No.2
9	Plug

Dust Cover Removal Note

1.  Remove the rear mudguard (LH). (See MUDGUARD REMOVAL/INSTALLATION.)

2.  Release the dust cover tab using a flathead screwdriver as shown in the figure.

ac5uuw00007047

3.  Remove the dust cover.

Fuel-filler Pipe Installation Note

1.  Temporarily install the fuel-filler pipe to the vehicle-side stud bolt.

ac5uuw00010496

2.  Temporarily tighten bolt A.

3.  Completely tighten bolt B.

4.  Completely tighten bolt C.

5.  Completely tighten bolt A.

6.  Completely tighten the nut.

Evaporative Hose No.1 Installation Note

1.  Install the evaporative hose No.1 as shown in the figure.

ac5uuw00010808

Breather Hose Installation Note

1.  Install the breather hose as shown in the figure.

ac5uuw00003205

Joint Hose Installation Note

1.  Install the joint hose as shown in the figure.

ac5uuw00010260
