UREA PUMP REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0116e1393800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the urea tank cover No.1. (See UREA TANK REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Drain the AdBlue^®. (See AdBlue® REPLACEMENT [SKYACTIV-D 2.2].)

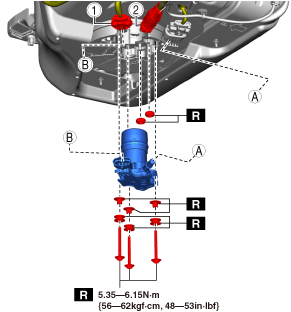

4.  Remove in the order indicated in the figure.

5.  Install in the reverse order of removal.

6.  Refill the AdBlue^®. (See AdBlue® REPLACEMENT [SKYACTIV-D 2.2].)

7.  If the urea Pump is replaced, perform the “Operation After Replacing Urea Pump” procedure. (See SCR SYSTEM INSPECTION [SKYACTIV-D 2.2].)

ac5wzw00012221

1	Urea Pump connector
2	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
3	Urea Pump

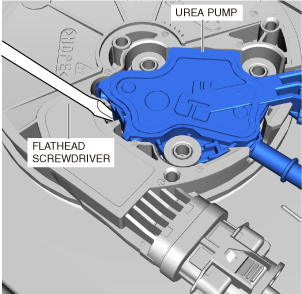

Urea Pump Removal Note

1.  Insert a flathead screwdriver into the position shown in the figure.

ac5wzw00012677

Urea Pump Installation Note

Caution

•  Do not apply force to the areas other than the shaded area shown in the figure.

1.  Apply force to the shaded area shown in the figure and install the urea Pump.

am6xuw00012661
