EXHAUST GAS TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 2.2]

id0140z7446300


Exhaust Gas Temperature Sensor No.1

Warning
•  A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.
Caution
•  Perform exhaust gas temperature sensor removal/installation only when inspection or replacement is required, such as when DTCs for the sensor are displayed, because it may cause exhaust gas leaks.
•  If removal or installation/removal is performed, always verify that there is no exhaust gas leak after reinstallation.

Resistance inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the exhaust gas temperature sensor No.1. (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

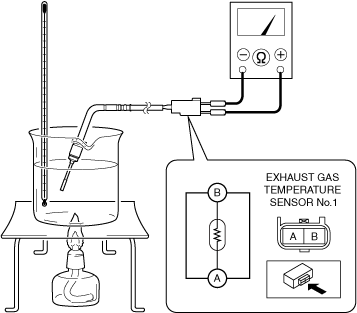

3.  Place the detection part of the exhaust gas temperature sensor No.1 in the water and while gradually increasing the water temperature, measure the resistance between exhaust gas temperature sensor No.1 terminals A and B.

ac5wzw00009781

•  If not as specified, replace the exhaust gas temperature sensor No.1. (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

Specification (Reference) (Fuel Injector (2-pin Type))

Water temperature (°C {°F})

Resistance (Kilohms)
100 {212}
Approx. 4.51

ac5wzw00006572

Specification (Reference) (Fuel Injector (6-pin Type))

Water temperature (°C {°F})

Resistance (Kilohms)
100 {212}
Approx. 278.2

ac5wzw00012723


Exhaust Gas Temperature Sensor No.2

Warning
•  A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.
Caution
•  Perform exhaust gas temperature sensor removal/installation only when inspection or replacement is required, such as when DTCs for the sensor are displayed, because it may cause exhaust gas leaks.
•  If removal or installation/removal is performed, always verify that there is no exhaust gas leak after reinstallation.

Resistance inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the exhaust gas temperature sensor No.2. (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Place the detection part of the exhaust gas temperature sensor No.2 in the water and while gradually increasing the water temperature, measure the resistance between exhaust gas temperature sensor No.2 terminals A and B.

ac5wzw00009782

•  If not as specified, replace the exhaust gas temperature sensor No.2. (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

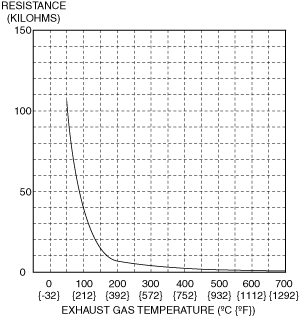

Specification (Reference) (Fuel Injector (2-pin Type))

Water temperature (°C {°F})

Resistance (Kilohms)
50 {122}
Approx. 106

ac5wzw00004437

Specification (Reference) (Fuel Injector (6-pin Type))

Water temperature (°C {°F})

Resistance (Kilohms)
50 {122}
Approx. 53.27

ac5wzw00012723


Exhaust Gas Temperature Sensor No.3

Warning
•  A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.
Caution
•  Do not allow flammable objects such as the taping for bundling wiring harness to come into contact with the catalytic converter.
•  Perform exhaust gas temperature sensor removal/installation only when inspection or replacement is required, such as when DTCs for the sensor are displayed, because it may cause exhaust gas leaks.
•  If removal or installation/removal is performed, always verify that there is no exhaust gas leak after reinstallation.

Resistance inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the exhaust gas temperature sensor No.3. (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

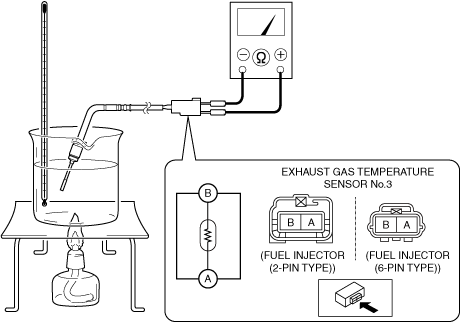

3.  Place the detection part of the exhaust gas temperature sensor No.3 in the water and while gradually increasing the water temperature, measure the resistance between exhaust gas temperature sensor No.3 terminals A and B.

ac5wzw00009827

•  If not as specified, replace the exhaust gas temperature sensor No.3. (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

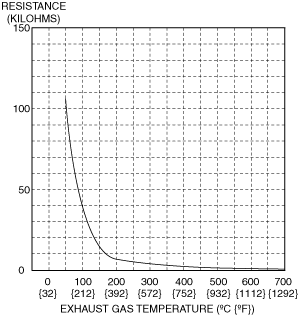

Specification (Reference) (Fuel Injector (2-pin Type))

Water temperature (°C {°F})

Resistance (Kilohms)
50 {122}
Approx. 106

ac5wzw00004441

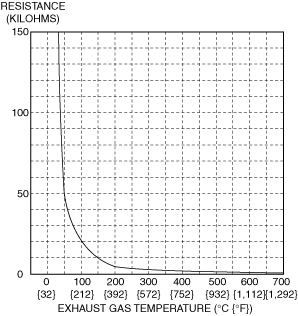

Specification (Reference) (Fuel Injector (6-pin Type))

Water temperature (°C {°F})

Resistance (Kilohms)
50 {122}
Approx. 53.27

ac5wzw00012724


Exhaust Gas Temperature Sensor No.4 (With SCR System)

Warning
•  A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.
Caution
•  Perform exhaust gas temperature sensor removal/installation only when inspection or replacement is required, such as when DTCs for the sensor are displayed, because it may cause exhaust gas leaks.
•  If removal or installation/removal is performed, always verify that there is no exhaust gas leak after reinstallation.

Resistance inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the exhaust gas temperature sensor No.4. (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

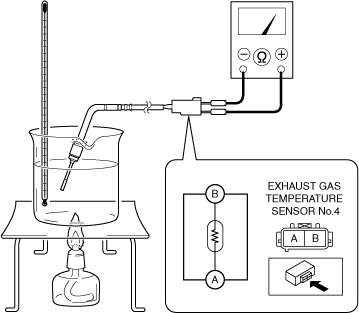

3.  Place the detection part of the exhaust gas temperature sensor No.4 in the water and while gradually increasing the water temperature, measure the resistance between exhaust gas temperature sensor No.4 terminals A and B.

ac5uuw00008503

•  If not as specified, replace the exhaust gas temperature sensor No.4. (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

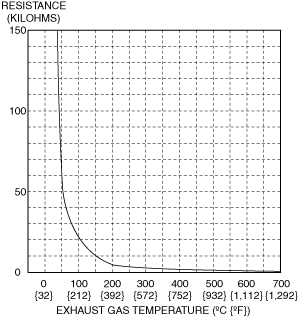

Resistance

Water temperature (°C {°F})

Resistance (Kilohms)
50 {122}
Approx. 53.27

Specification (Reference)

ac5uuw00008501


Exhaust Gas Temperature Sensor No.5 (With SCR System)

Warning
•  A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.
Caution
•  Perform exhaust gas temperature sensor removal/installation only when inspection or replacement is required, such as when DTCs for the sensor are displayed, because it may cause exhaust gas leaks.
•  If removal or installation/removal is performed, always verify that there is no exhaust gas leak after reinstallation.

Resistance inspection

1.  Stop the engine and wait until the exhaust system temperature decreases.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the floor under cover (LH). (4WD) (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

4.  Remove the floor under cover. (2WD) (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

5.  Remove the insulator and brace bar. (2WD) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

6.  Remove the clip.

ac5wzw00012085

7.  Remove the bolts.

8.  Disconnect the connector.

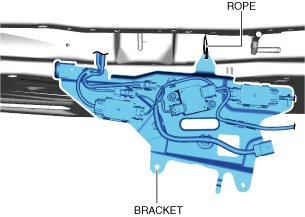

9.  Suspend module bracket using a rope as shown in the figure.

ac5wzw00012086

10.  Disconnect the exhaust gas temperature sensor No.5 connector.

atstjt00000039

11.  Measure the resistance between exhaust gas temperature sensor No.5 terminals A and B.

atstjt00000040

•  If not within the standard, replace exhaust gas temperature sensor No.5. (See EXHAUST GAS TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

Standard

Ambient temperature (°C {°F})

Resistance (Kilohms)
−25 {−13}
370—812
0 {32}
160—309
25 {77}
78—137
50 {122}
42—68

Specification (Reference)

ac5uuw00008501
