OIL SEAL (DIFFERENTIAL) REPLACEMENT [C66M-R, C66MX-R]


id0515ma160100

Special Service Tool (SST)

49 U027 003

Oil Seal Installer
49 G030 797

Handle
(Part of 49 G030 795)
49 B025 001

Body
[C66MX-R]

Replacement Part

Oil seal

Quantity: 1

Location of use: Manual transaxle (LH)
Oil seal

Quantity: 1

Location of use: Manual transaxle (RH)


2WD

1.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Drain the manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [C66M-R, C66MX-R].)

3.  Disconnect the front drive shaft (LH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

4.  Disconnect the front drive shaft (RH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

5.  Remove the oil seal (LH).

ac5uuw00006393

6.  Remove the oil seal (RH).

ac5wzw00010736

7.  Using the SSTs and a hammer, install a new oil seal (LH).

ac5ccw00000526

A: 0.3 mm {0.01 in}
B: 0.3 mm {0.01 in}

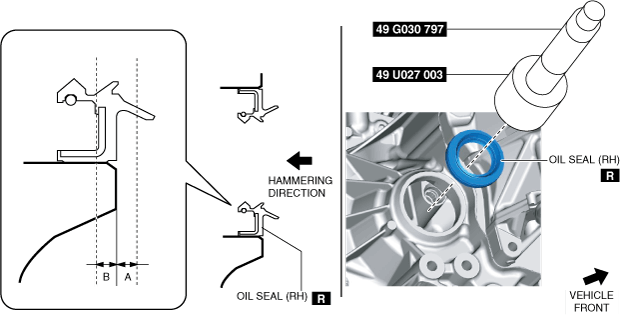

8.  Using the SSTs and a hammer, install a new oil seal (RH).

ac5uuw00006395

A: 0.3 mm {0.01 in}
B: 0.3 mm {0.01 in}

9.  Coat the lip of each oil seal with manual transaxle oil.

10.  Connect the front drive shaft (RH) to the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

11.  Connect the front drive shaft (LH) to the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

12.  Add the specified amount of specified manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [C66M-R, C66MX-R].)

13.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)


4WD

1.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Drain the manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [C66M-R, C66MX-R].)

3.  Disconnect the front drive shaft (LH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

4.  Remove the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

5.  Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

6.  Remove the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

7.  Remove the exhaust manifold. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

8.  Remove the transfer. (See TRANSFER REMOVAL/INSTALLATION [C66MX-R].)

9.  Remove the oil seal (LH).

ac5uuw00006393

10.  Remove the oil seal (RH).

ac5wzw00009478

11.  Using the SSTs and a hammer, install a new oil seal (LH).

ac5ccw00000526

A: 0.3 mm {0.01 in}
B: 0.3 mm {0.01 in}

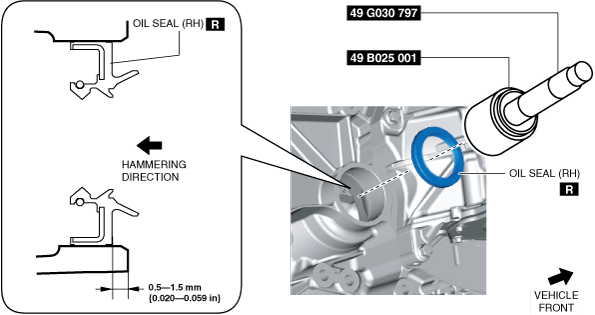

12.  Using the SSTs and a hammer, install a new oil seal (RH).

ac5wzw00009479

13.  Coat the lip of each oil seal with manual transaxle oil.

14.  Install the transfer. (See TRANSFER REMOVAL/INSTALLATION [C66MX-R].)

15.  Install the exhaust manifold. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

16.  Install the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

17.  Install the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

18.  Install the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

19.  Connect the front drive shaft (LH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

20.  Add the specified amount of specified manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [C66M-R, C66MX-R].)

21.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
