PROPELLER SHAFT REMOVAL/INSTALLATION


id031500149300

Caution
•  If the constant velocity joint is bent during propeller shaft removal/installation or transportation after servicing, the constant velocity joint boot may contact the metallic cover and the boot may be damaged. Insert a rag between the boot and the metallic cover before servicing to protect the boot.
ac5wzw00013817

1.  Remove the following parts.

(1)  Floor under cover No.1 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)
(2)  Floor under cover No.2 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

2.  Remove the fasteners in the order shown in the figure.

ac5uuw00010766

3.  Remove the insulator.

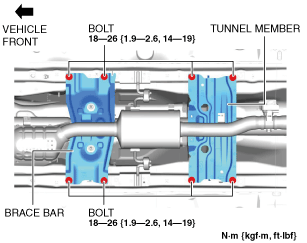

4.  Remove the following parts.

(1)  Brace bar
ac5uuw00010767
(2)  Tunnel member

5.  For SKYACTIV-G 2.0 (With cylinder deactivation), SKYACTIV-G 2.5 (With cylinder deactivation) vehicles, perform the following procedure.

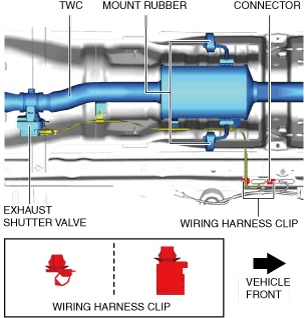

(1)  Remove the TWC from the mount rubber.
ac5wzw00011582
(2)  Disconnect the exhaust shutter valve connector.
(3)  Disconnect the wiring harness clip.
(4)  Remove the nut.
ac5wzw00011230
(5)  Disconnect the bracket from the TWC.
(6)  Disconnect the TWC from the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(7)  Suspend the TWC using a cable as shown in the figure.
ac5wzw00011231

6.  For SKYACTIV-G 2.5T vehicles, perform the following procedure.

(1)  Remove the nut.
ac5wzw00013586
(2)  Disconnect the bracket from the TWC.
(3)  Remove the TWC from the mount rubber.
ac5wzw00013587
(4)  Disconnect the TWC from the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(5)  Suspend the TWC using a cable as shown in the figure.
ac5wzw00011231

7.  For SKYACTIV-D 2.2 (With SCR system) vehicles, perform the following procedure.

(1)  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
(2)  Disconnect the quick release connector from the urea injector. (See UREA INJECTOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

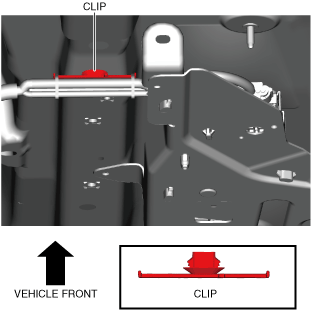

(3)  Remove the clip.
ac5uuw00009027

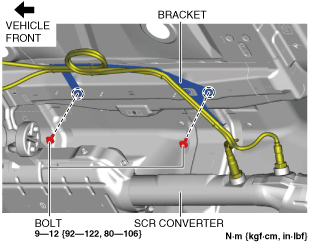

(4)  Remove the bolts.
ac5uuw00009028
(5)  Set the bracket aside.
(6)  Remove the SCR converter from the mount rubber.
ac5uuw00009029
(7)  Disconnect the SCR converter from the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(8)  Suspend the SCR converter using a cable as shown in the figure.
ac5uuw00009030

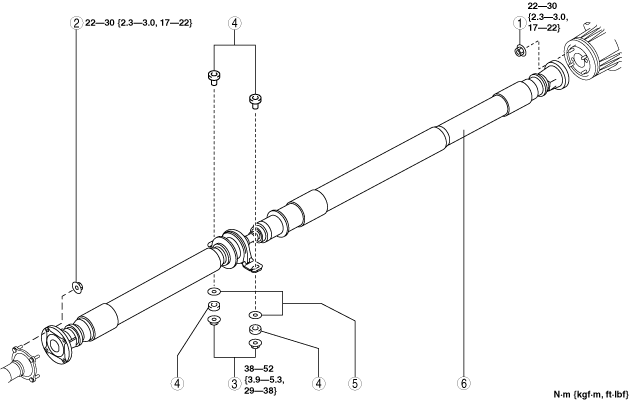

8.  Remove in the order indicated in the figure.

9.  Install in the reverse order of removal.

10.  Perform a road test and verify that there is no abnormal vibration or noise.

ac5wzw00011232

1
Nut (rear)
2
Nut (front)
3
Nut (center bearing support)
4
Bush, spacer
5
Washer
6
Propeller shaft


Propeller Shaft Removal Note

Caution
•  Do not mark with a punch to prevent imbalance.

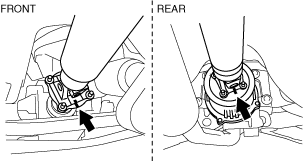

1.  Before removing the nut, place alignment marks on the companion flange (front) and constant velocity joint, and on the coupling component (rear) and yoke.

ac5uuw00000316

2.  Loosen the nuts (front, rear, center bearing support).

3.  Remove the front and rear nuts.

Caution
•  Propeller shaft is attached to the stud.

4.  Press the propeller shaft and remove it from the rear side.

Caution
•  Do not bend the propeller shaft to the extent that it interferes with the boot.

5.  Remove the center bearing support nut, then remove the propeller shaft


Propeller Shaft Installation Note

Caution
•  If the nuts are loosened, verify that the stud bolt tightening torque against the coupling is 6.4 N·m {65 kgf·cm, 57 in·lbf} or more. If the tightening torque is less than 6.4 N·m {65 kgf·cm, 57 in·lbf}, tighten the stud bolt with 6.4—9.6 N·m {66—97 kgf·cm, 57—84 in·lbf}.
ac5uuw00000877
•  When loosening the nut, if a nut is stuck to a stud bolt, replace the stud bolt with a new one.
•  When replacing the stud bolts, clean off oil and foreign matter on the bolts and coupling installation areas in advance.
Note
•  The stud bolts are entirely threaded with no front/rear distinction.

1.  Degrease the tightening area.

2.  Align the alignment marks, and temporarily install the nuts (front, rear, center bearing support).

ac5uuw00000316

Caution
•  Do not bend the propeller shaft to the extent that it interferes with the boot.

3.  Tighten the nut (front) with specified torque first, and then install the other nuts.
