OIL SEAL (DIFFERENTIAL) REPLACEMENT [D66M-R, D66MX-R]

id0515md160100

Special Service Tool (SST)

49 U027 003   Oil Seal Installer

49 G030 797   Handle (Part of 49 G030 795)

49 B025 001   Body [D66MX-R]

Replacement Part

2WD

1.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Drain the manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [D66M-R, D66MX-R].)

3.  Disconnect the front drive shaft (LH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

4.  Disconnect the front drive shaft (RH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

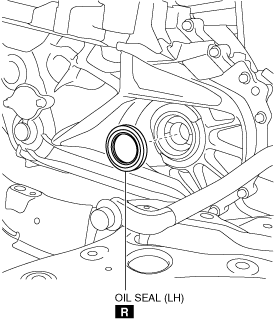

5.  Remove the oil seal (LH).

ac5wzw00009490

6.  Remove the oil seal (RH).

ac5wzw00009491

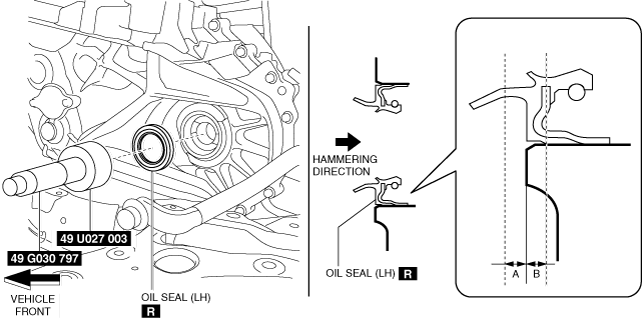

7.  Using the SSTs and a hammer, install a new oil seal (LH).

ac5wzw00007921

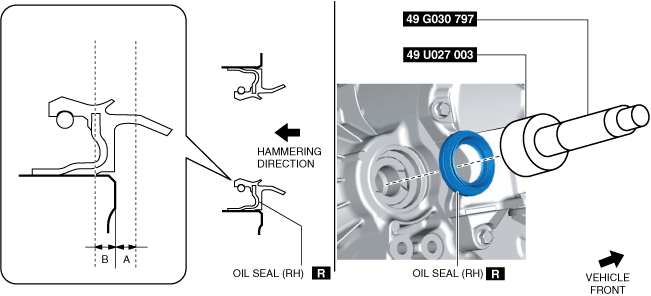

8.  Using the SSTs and a hammer, install a new oil seal (RH).

ac5wzw00009492

9.  Coat the lip of each oil seal with manual transaxle oil.

10.  Connect the front drive shaft (RH) to the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

11.  Connect the front drive shaft (LH) to the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

12.  Add the specified amount of specified manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [D66M-R, D66MX-R].)

13.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

4WD

1.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Drain the manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [D66M-R, D66MX-R].)

3.  Disconnect the front drive shaft (LH) to the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

4.  Remove the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

5.  Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

6.  Remove the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

7.  Remove the transfer. (See TRANSFER REMOVAL/INSTALLATION [D66MX-R].)

8.  Remove the oil seal (LH).

ac5wzw00009490

9.  Remove the oil seal (RH).

ac5wzw00009493

10.  Using the SSTs and a hammer, install a new oil seal (LH).

ac5wzw00007921

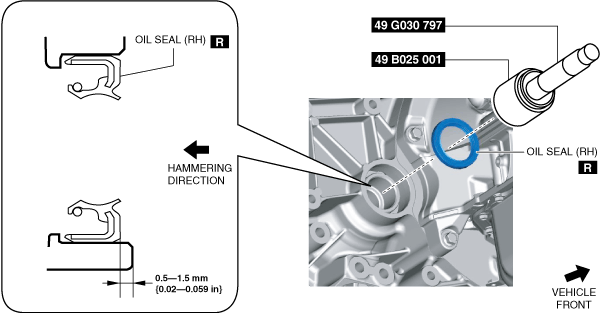

11.  Using the SSTs and a hammer, install a new oil seal (RH).

ac5wzw00009494

12.  Coat the lip of each oil seal with manual transaxle oil.

13.  Install the transfer. (See TRANSFER REMOVAL/INSTALLATION [D66MX-R].)

14.  Install the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

15.  Install the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

16.  Install the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

17.  Connect the front drive shaft (LH) to the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

18.  Add the specified amount of specified manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [D66M-R, D66MX-R].)

19.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
