AUTOMATIC TRANSAXLE LOCATION INDEX [FW6A-EL, FW6AX-EL]

id0517h2118200

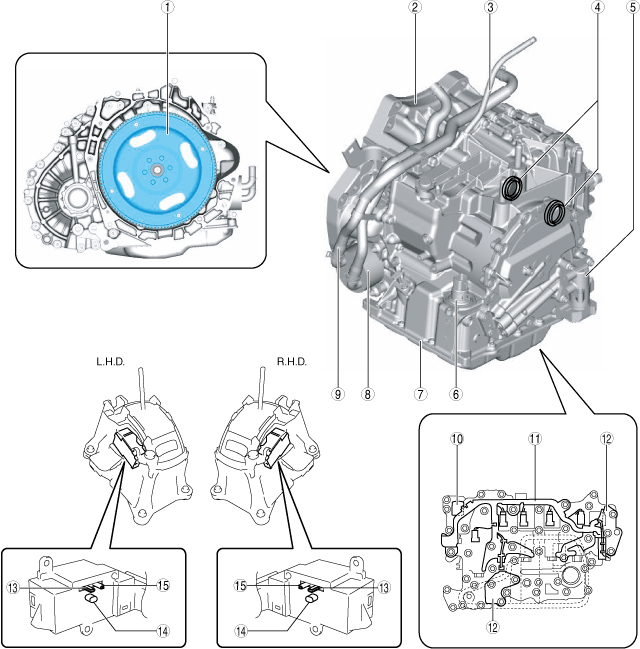

SKYACTIV-G 2.0 (Without coolant control valve), SKYACTIV-G 2.5 (Without coolant control valve)

ac5wzw00012858

1	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
2	Automatic transaxle (See MECHANICAL SYSTEM TEST [FW6A-EL, FW6AX-EL].) (See ROAD TEST [FW6A-EL, FW6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [FW6A-EL, FW6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FW6A-EL, FW6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT [FW6A-EL, FW6AX-EL].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6A-EL].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6AX-EL].) (See INITIAL LEARNING [FW6A-EL, FW6AX-EL].)
3	Breather hose (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6A-EL].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6AX-EL].)
4	Oil seal (differential) (See OIL SEAL (DIFFERENTIAL) REPLACEMENT [FW6A-EL, FW6AX-EL].)
5	Electric AT oil pump (With i-stop) (See ELECTRIC AT OIL PUMP REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
6	Oil seal (control valve body) (See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT [FW6A-EL, FW6AX-EL].)
7	Control valve body (See CONTROL VALVE BODY REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].) (See TCM CONFIGURATION [FW6A-EL, FW6AX-EL].)
8	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
9	Water hose (See OIL COOLER REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
10	ON/OFF solenoid (See ON/OFF SOLENOID REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
11	Coupler component (See COUPLER COMPONENT REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
12	Oil pressure switch (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
13	Up switch (See UP SWITCH INSPECTION [FW6A-EL, FW6AX-EL].) (See UP SWITCH REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
14	M position switch (See M POSITION SWITCH INSPECTION [FW6A-EL, FW6AX-EL].) (See M POSITION SWITCH REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
15	Down switch (See DOWN SWITCH INSPECTION [FW6A-EL, FW6AX-EL].) (See DOWN SWITCH REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)

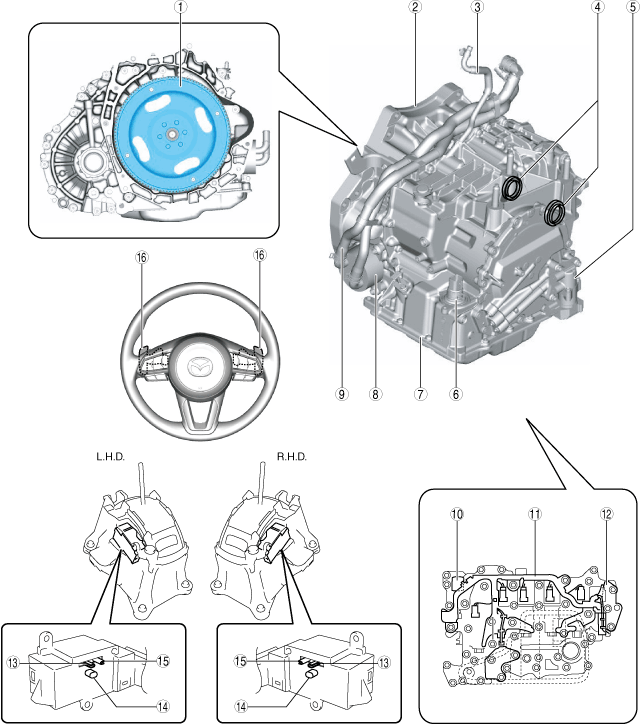

SKYACTIV-G 2.0 (With coolant control valve), SKYACTIV-G 2.5 (With coolant control valve)

ac5wzw00014116

1	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
2	Automatic transaxle (See MECHANICAL SYSTEM TEST [FW6A-EL, FW6AX-EL].) (See ROAD TEST [FW6A-EL, FW6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [FW6A-EL, FW6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FW6A-EL, FW6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT [FW6A-EL, FW6AX-EL].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6A-EL].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6AX-EL].) (See INITIAL LEARNING [FW6A-EL, FW6AX-EL].)
3	Breather hose (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6A-EL].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6AX-EL].)
4	Oil seal (differential) (See OIL SEAL (DIFFERENTIAL) REPLACEMENT [FW6A-EL, FW6AX-EL].)
5	Electric AT oil pump (With i-stop) (See ELECTRIC AT OIL PUMP REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
6	Oil seal (control valve body) (See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT [FW6A-EL, FW6AX-EL].)
7	Control valve body (See CONTROL VALVE BODY REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].) (See TCM CONFIGURATION [FW6A-EL, FW6AX-EL].)
8	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
9	Water hose (See OIL COOLER REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
10	ON/OFF solenoid (See ON/OFF SOLENOID REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
11	Coupler component (See COUPLER COMPONENT REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
12	Oil pressure switch (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
13	Up switch (See UP SWITCH INSPECTION [FW6A-EL, FW6AX-EL].) (See UP SWITCH REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
14	M position switch (See M POSITION SWITCH INSPECTION [FW6A-EL, FW6AX-EL].) (See M POSITION SWITCH REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
15	Down switch (See DOWN SWITCH INSPECTION [FW6A-EL, FW6AX-EL].) (See DOWN SWITCH REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
16	Steering shift switch (See STEERING SHIFT SWITCH INSPECTION [FW6A-EL, FW6AX-EL].) (See STEERING SHIFT SWITCH REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
