INDICATOR REMOVAL/INSTALLATION

id051800297900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(2)  Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION.)

(3)  Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(4)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

3.  Turn over the removed shift panel and remove the boots from the boots securing parts shown in the figure.

ac5uuw00006542

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

ac5uuw00006543

1	Indicator connector
2	Drive selection switch connector (With drive selection switch)
3	Screw (With drive selection switch)
4	Drive selection switch (With drive selection switch)
5	Indicator panel
6	Indicator (See Indicator Removal Note.)

Indicator Removal Note

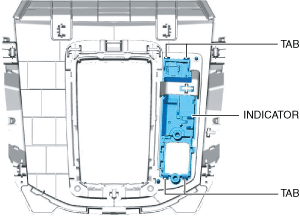

1.  Detach tabs shown in the figure and remove the indicator.

ac5uuw00006544
