AIRFLOW MODE MAIN LINK INSTALLATION

id071100811100

1.  Align the airflow mode main link and the airflow mode sub link projection as shown in the figure.

ac5uuw00003877

2.  When lightly pressing the airflow main link to rotate it in the direction of the arrow, verify that the airflow mode door switches to the position for each mode.

ac5uuw00001194

3.  Align the airflow mode main link installation hole with the shape of the airflow mode actuator shaft, and install while holding the airflow mode main link.

ac5uuw00001195

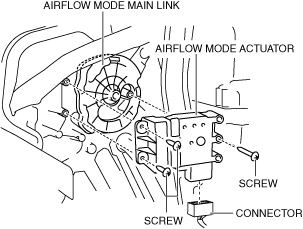

4.  Install the airflow mode actuator.

ac5uuw00005221

5.  Install the screws.

6.  Connect the connector.

7.  Install the following parts:

(1)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

(2)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(3)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(5)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(6)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(7)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

8.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
