AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1802400


L.H.D.


Driver-side

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(2)  Driver-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

ac5wzw00008843

4.  Remove the screws.

5.  Remove the driver-side air mix actuator.

6.  Install in the reverse order of removal.


Passenger-side

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(4)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(5)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
(7)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

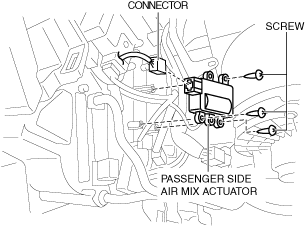

ac5wzw00008844

4.  Remove the screws.

5.  Remove the passenger-side air mix actuator.

6.  Install in the reverse order of removal.


R.H.D.


Driver-side

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Disconnect the connector.

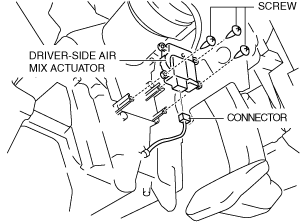

ac5wzw00008845

3.  Remove the screws.

4.  Remove the driver-side air mix actuator.

5.  Install in the reverse order of removal.


Passenger-side

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(4)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(5)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
(7)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

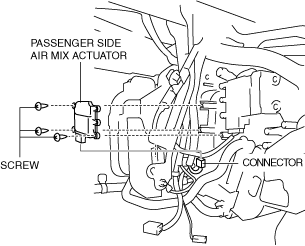

ac5wzw00008846

4.  Remove the screws.

5.  Remove the passenger-side air mix actuator.

6.  Install in the reverse order of removal.
