DTC B12C0:00 [PARKING ASSIST UNIT (OPTICAL)]
id0902r0055100
Description |
Side camera malfunction |
---|---|
Detection condition
|
• The parking assist unit (optical) detects an input error from the side camera.
|
Fail-safe
|
• Black screen displayed when system is starting
|
Possible cause
|
• Parking assist unit (optical) connector or terminal malfunction
• Side camera connector or terminal malfunction

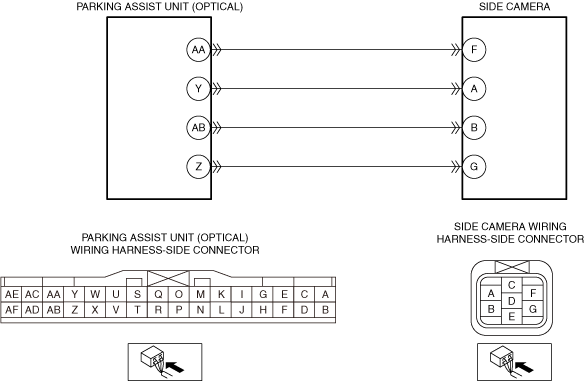

• Short to ground in wiring harness between the following terminals:
• Short to power supply in wiring harness between the following terminals:
• Open circuit in wiring harness between the following terminals:
• Side camera malfunction
• Parking assist unit (optical) malfunction
|
![]() |
Diagnostic Procedure
Step |
Inspection |
Action |
|
---|---|---|---|
1
|
VERIFY OTHER PARKING ASSIST UNIT (OPTICAL) DTCs
• Clear the DTC for the parking assist unit (optical) using the M-MDS.
• Retrieve the parking assist unit (optical) DTCs using the M-MDS.
• Is DTC U3000:41 or U3000:49 displayed?
|
Yes
|
Replace the parking assist unit (optical), then go to Step 8.
|
No
|
Go to the next step.
|
||
2
|
INSPECT PARKING ASSIST UNIT (OPTICAL) CONNECTOR CONDITION
• Switch the ignition off.
• Disconnect the negative battery terminal.
• Disconnect the parking assist unit (optical) connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the connector, then go to Step 8.
|
||
3
|
INSPECT SIDE CAMERA CONNECTOR CONDITION
• Disconnect the side camera connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the connector, then go to Step 8.
|
||
4
|
INSPECT SIDE CAMERA CIRCUIT FOR SHORT TO GROUND
• Verify that the side camera and parking assist unit (optical) connectors are disconnected.
• Inspect for continuity between the following terminals (wiring harness-side) and body ground:
• Is there continuity?
|
Yes
|
Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals:
• Parking assist unit (optical) terminal AA—Side camera terminal F
If there is a common connector:
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.
• Repair or replace the malfunctioning part.
If there is no common connector:
• Repair or replace the wiring harness which has a short to ground.
Go to Step 8.
|
No
|
Go to the next step.
|
||
5
|
INSPECT SIDE CAMERA CIRCUIT FOR SHORT TO POWER SUPPLY
• Verify that the side camera and parking assist unit (optical) connectors are disconnected.
• Connect the negative battery terminal.
• Switch the ignition ON (engine off or on).
• Measure the voltage at the following terminals (wiring harness-side):
• Is the voltage 0 V?
|
Yes
|
Go to the next step.
|
No
|
Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals:
• Parking assist unit (optical) terminal AA—Rear mount camera terminal F
If there is a common connector:
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply.
• Repair or replace the malfunctioning part.
If there is no common connector:
• Repair or replace the wiring harness which has a short to power supply.
Go to Step 8.
|
||
6
|
INSPECT SIDE CAMERA CIRCUIT FOR OPEN CIRCUIT
• Switch the ignition off.
• Disconnect the negative battery terminal.
• Verify that the side camera and parking assist unit (optical) connectors are disconnected.
• Inspect for continuity between the following terminals (wiring harness-side):
• Is there continuity?
|
Yes
|
Go to the next step.
|
No
|
Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals:
• Parking assist unit (optical) terminal AA—Side camera terminal F
If there is a common connector:
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit.
• Repair or replace the malfunctioning part.
If there is no common connector:
• Repair or replace the wiring harness which has an open circuit.
Go to Step 8.
|
||
7
|
INSPECT SIDE CAMERA
• Inspect the side camera.
(See SIDE CAMERA INSPECTION.)
• Is the side camera normal?
|
Yes
|
Go to the next step.
|
No
|
Replace the side camera, then go to the next step.
|
||
8
|
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
• Always reconnect all disconnected connectors.
• Connect the negative battery terminal.
• Clear the DTC for the parking assist unit (optical) using the M-MDS.
• Retrieve the parking assist unit (optical) DTCs using the M-MDS.
• Is the same DTC displayed?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the parking assist unit (optical).
Go to the next step.
|
No
|
Go to the next step.
|
||
9
|
VERIFY IF OTHER DTCs DISPLAYED
• Are any other DTCs displayed?
|
Yes
|
Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
|
No
|
DTC troubleshooting completed.
|
