REAR BUMPER REMOVAL/INSTALLATION

id091000800700

1.  Affix the protective tape to the positions shown in the figure to prevent scratches and damage.

ac5wzw00013911

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the rear combination right. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

4.  Remove the rear splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

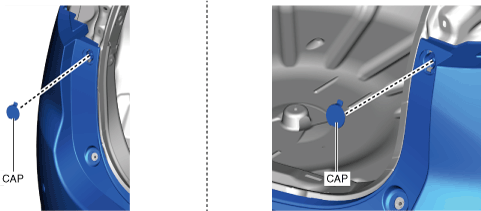

5.  Remove the cap.

ac5wzw00011097

6.  Remove screws A and B.

ac5wzw00013912

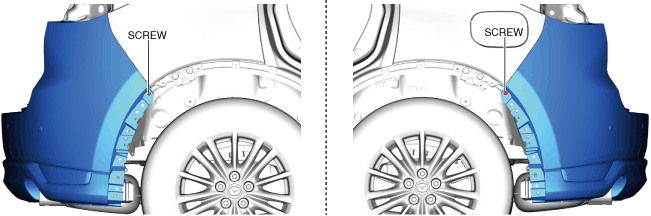

7.  Remove the screws.

ac5wzw00011099

8.  Remove the fasteners.

ac5wzw00011100

9.  Press the tab of rear under cover and remove it. (with rear under cover)

10.  Remove the fasteners.

ac5wzw00011101

11.  Detach the rear bumper from the rear bumper slider while holding the rear end of the rear bumper, moving it in the direction of the arrows shown in the figure, and detaching the hooks.

ac5wzw00011102

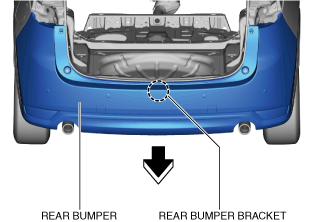

12.  Move the rear bumper in the direction of the arrow shown in the figure and detach it from rear bumper bracket.

ac5wzw00011103

Caution

•  After removing rear bumper, it may hit the rear over fender and cause a damage and/or injury. Perform the following procedure to prevent the rear over fender from being damaged.

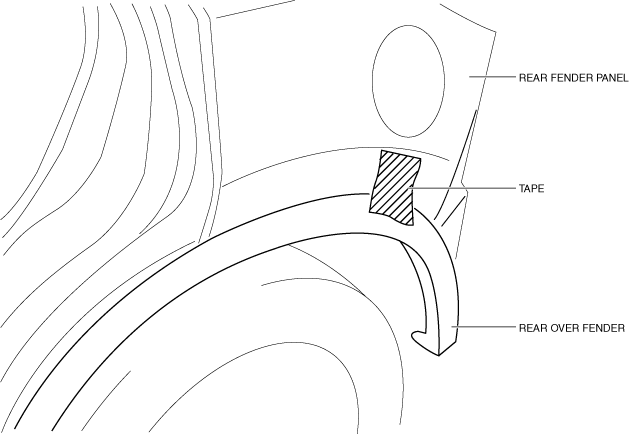

―  Fix the rear over fender and rear fender panel with protective tape.

ac5wzw00011104

13.  Disconnect the connectors. (with rear ultrasonic sensor or rear fog light)

L.H.D.

ac5wzw00014284

R.H.D.

ac5wzw00014285

14.  Remove the wiring harness clips. (with rear ultrasonic sensor or rear fog light)

15.  Remove the rear bumper.

16.  Install in the reverse order of removal.

17.  If the rear bumper is replaced, perform the blind spot monitoring (BSM) radar test. (with blind spot monitoring (BSM) system) (See BLIND SPOT MONITORING (BSM) RADAR TEST.)

Caution

•  If the rear bumper installation position is changed or individual differences (coating film/thickness) occur, the blind spot monitoring control module radar angle will deviate which could result in the module not detecting a vehicle approaching from the rear correctly. If the rear bumper is replaced, perform the blind spot monitoring (BSM) radar test.
