REAR BUMPER REINFORCEMENT REMOVAL/INSTALLATION

id091000800900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(2)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(3)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

3.  Remove the hanger rubber in the direction of the arrow shown in the figure. (LH and RH) (except SKYACTIV-D 2.2 (with SCR system)) (RH only) (SKYACTIV-D 2.2 (with SCR system))

ac5wzw00011107

4.  Remove the nuts.

Warning

•  Removing the rear bumper reinforcement without supporting it could cause the rear bumper reinforcement to fall and cause serious injury. Always perform the procedure with at least another person to prevent the rear bumper reinforcement from falling.

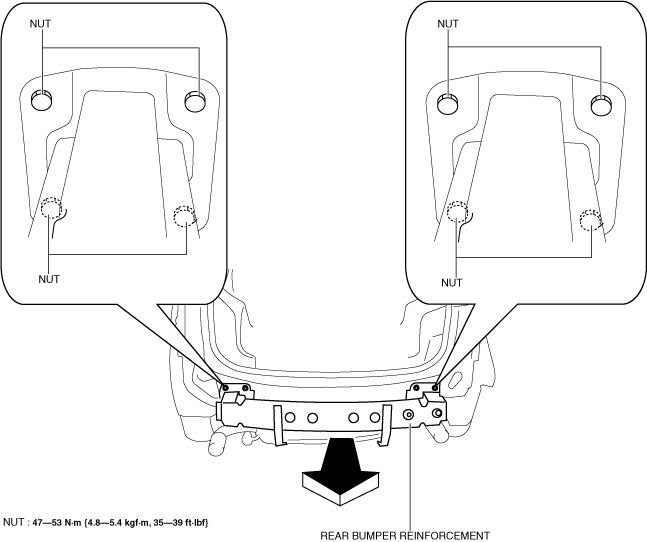

ac5wzw00011108

5.  Remove the rear bumper reinforcement in the direction of the arrow shown in the figure.

6.  Install in the reverse order of removal.
