FRONT FENDER PANEL REMOVAL/INSTALLATION

id091000801000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(4)  Front bumper slider (See BUMPER SLIDER REMOVAL/INSTALLATION.)

(5)  Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

(6)  Edge rubber

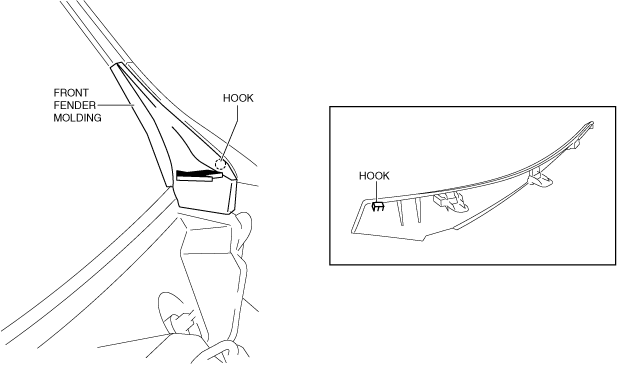

3.  Pull the front fender molding in the direction of the arrow while detaching the hook.

ac5wzw00011109

4.  Pull the front fender molding in the direction of the arrow while detaching the hook.

ac5wzw00011110

5.  Pull the front fender molding in the direction of the arrow and remove it while detaching the tabs.

ac5wzw00011111

6.  Remove the fastener.

ac5wzw00011112

7.  Open the front door.

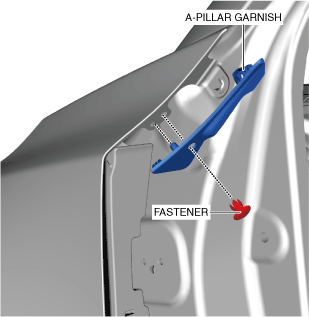

8.  Remove the fastener.

ac5wzw00011113

9.  Remove the A-pillar garnish.

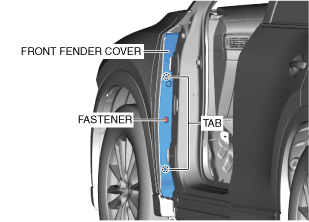

10.  Remove the fastener.

ac5wzw00011114

11.  Remove the tabs.

12.  Remove the front fender cover in the direction of the arrow shown in the figure.

ac5wzw00011115

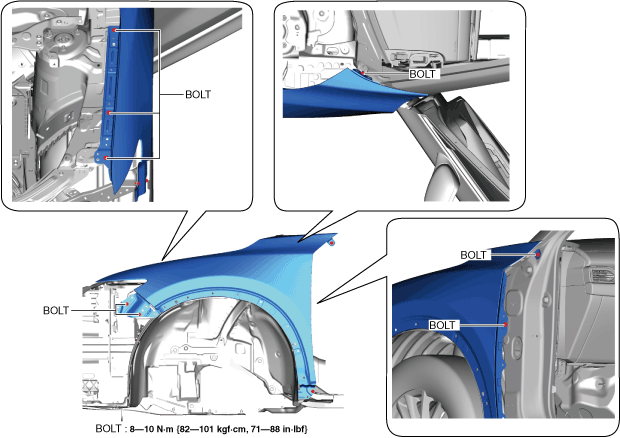

13.  Remove the bolts.

ac5wzw00011116

14.  Remove the front fender panel.

15.  Install in the reverse order of removal.
