BUMPER SLIDER REMOVAL/INSTALLATION

id091000822500

Front Bumper Slider

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

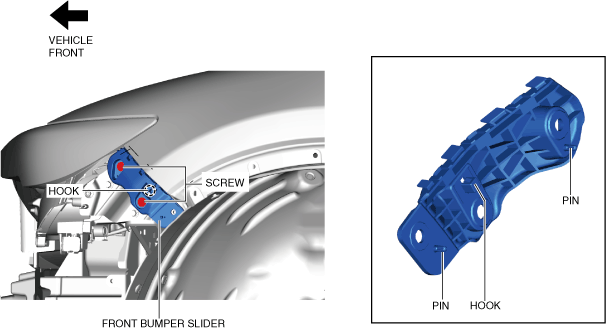

4.  Remove the screws.

ac5wzw00011141

5.  Disengage the pins and hook, remove the front bumper slider.

6.  Install in the reverse order of removal.

Rear Bumper Slider

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(3)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

3.  Remove the screws.

ac5wzw00011142

4.  Remove the nut.

5.  Disengage the pins and hook, remove the rear bumper slider.

6.  Install in the reverse order of removal.
