ENERGY-ABSORBING FORM REMOVAL/INSTALLATION

id091000888800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Set plate (See SET PLATE REMOVAL/INSTALLATION.)

3.  Insert the flathead screwdriver shown in the figure, push the fasteners from back side of front bumper reinforcement.

ac5wzw00011152

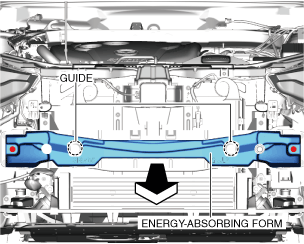

4.  Pull the energy-absorbing form in the direction of arrow shown in the figure while detaching guides.

ac5wzw00011153

5.  Install in the reverse order of removal.
