EXTRACTOR CHAMBER REMOVAL/INSTALLATION

id091600801500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(2)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(3)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

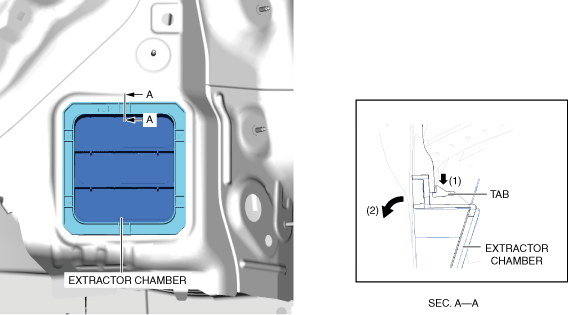

3.  Remove the extractor chamber in the direction of arrow (2), while pressing the tab in the direction of arrow (1).

ac5wzw00011127

4.  Install in the reverse order of removal.
