DOOR SASH FILM REMOVAL

id091600805200

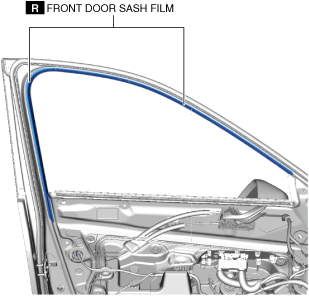

Front Door Sash Film

Replace parts

Front door sash film

Number of parts: 2

Used place: Front door sash film

1.  Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)
(2)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)
(3)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)
(4)  Glass run channel

4.  Peel off the front door sash film by pulling it outward from one end.

ac5wzw00011060

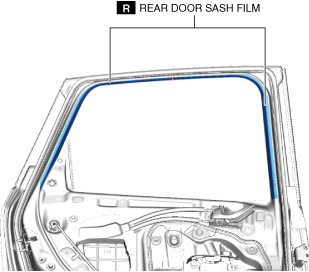

Rear Door Sash Film

Replace parts

Rear door sash film

Number of parts: 2

Used place: Rear door sash film

1.  Fully open the rear door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)
(2)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)
(3)  Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)
(4)  Glass run channel

4.  Peel off the rear door sash film by pulling it outward from one end.

ac5wzw00011061
