DOOR SASH FILM INSTALLATION

id091600805300

1.  Remove any grease or dirt from the adhesion surface of the door.

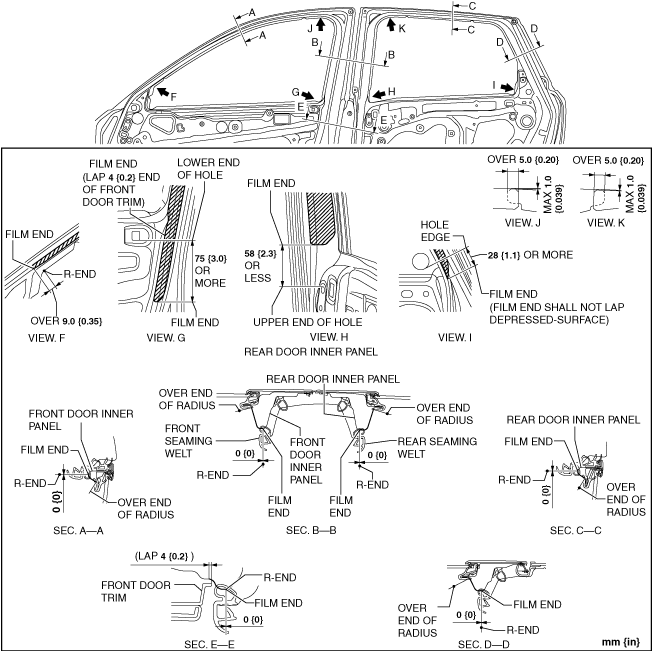

2.  Peel off the tape backing and attach the door sash film to the position shown in the figure.

ac5wzw00011062

Front

1.  Install the following parts:

(1)  Glass run channel

(2)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(3)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(4)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

Rear

1.  Install the following parts:

(1)  Glass run channel

(2)  Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

(3)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

(4)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)
