DECORATION PANEL DISASSEMBLY/ASSEMBLY


id091700600900

Note
•  The driver-side decoration panel and lower decoration panel cannot be disassembled. When replacing the driver-side decoration panel and lower decoration panel, refer to DECORATION PANEL REMOVAL/INSTALLATION. (See DECORATION PANEL REMOVAL/INSTALLATION.)

Upper Decoration Panel


Type A

1.  Remove the center ventilator grille. (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)

2.  Remove the hazard warning switch. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.)

3.  Disassemble in the order shown in the figure.

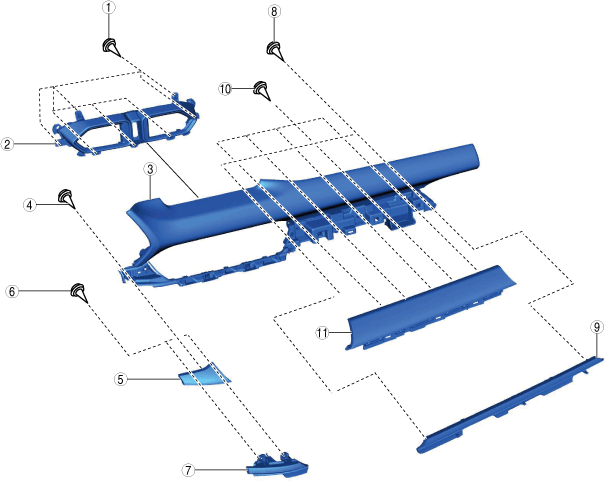

ac5uuw00006713

1
Screw
2
Bezel
3
Dashboard pad
4
Screw
5
Center panel
6
Screw
7
Print plate A
8
Screw
9
Print plate B
10
Screw
11
Decoration plate

4.  Assemble in the reverse order of disassembly.


Type B

1.  Remove the center ventilator grille. (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)

2.  Remove the hazard warning switch. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.)

3.  Disassemble in the order shown in the figure.

ac5uuw00006714

1
Screw
2
Bezel
3
Dashboard pad
4
Screw
5
Center panel
6
Screw
7
Decoration plate

4.  Assemble in the reverse order of disassembly.
