SUB-TRUNK REMOVAL/INSTALLATION

id091700998600

1.  Disconnect the negative battery terminal. (With Bose^®) (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION.)

3.  Remove the bass-box. (With Bose^®) (See BASS-BOX REMOVAL/INSTALLATION.)

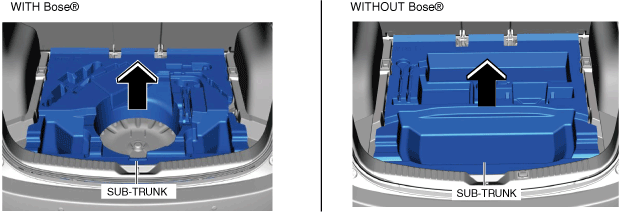

4.  Remove the sub-trunk in the direction of the arrow shown in the figure. (Without temporary spare tire)

ac5wzw00009045

5.  Remove sub-trunks No.1 and No.2 in the direction of the arrows shown in the figure. (With temporary spare tire)

ac5wzw00009046

6.  Install in the reverse order of removal.
