REAR FOG LIGHT REMOVAL/INSTALLATION

id091800805100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(3)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

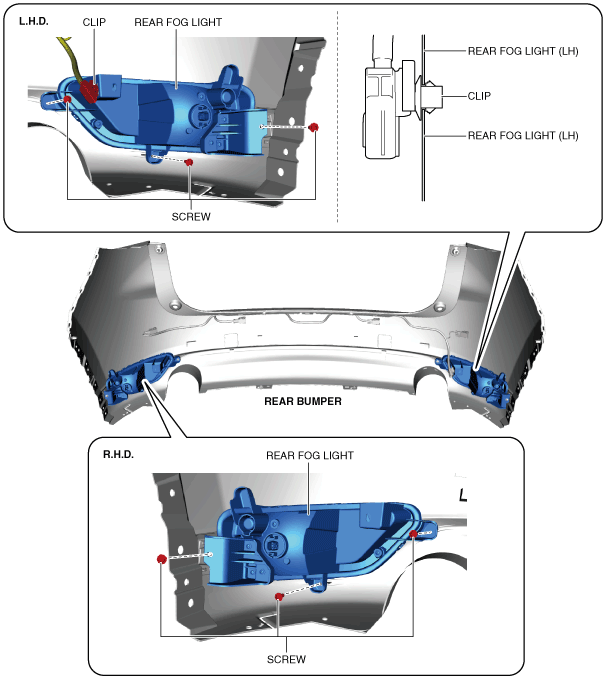

3.  Remove the clip. (L.H.D.)

ac5wzw00008721

4.  Remove the screws. (See Screw Installation Note.)

Caution

•  When removing the rear fog light from the rear bumper, the rear fog light may fall off and be damaged. Remove the rear fog light from the rear bumper while holding the rear fog light on the lens side by hand.

5.  Remove the rear fog light.

6.  Install in the reverse order of removal.

Screw Installation Note

1.  Install the screws in the order of (1), (2) and (3).

ac5wzw00008722
