GPS ANTENNA FEEDER REMOVAL/INSTALLATION

id092000812100

L.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(2)  Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(4)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(5)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(6)  GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)

(7)  Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION.)

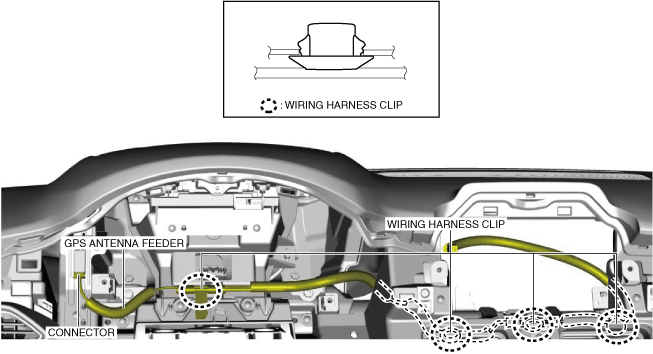

3.  Remove the wiring harness clips at the positions shown in the figure.

ac5uuw00006623

4.  Remove the GPS antenna feeder.

5.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(2)  Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(4)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(5)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(6)  GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)

(7)  Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION.)

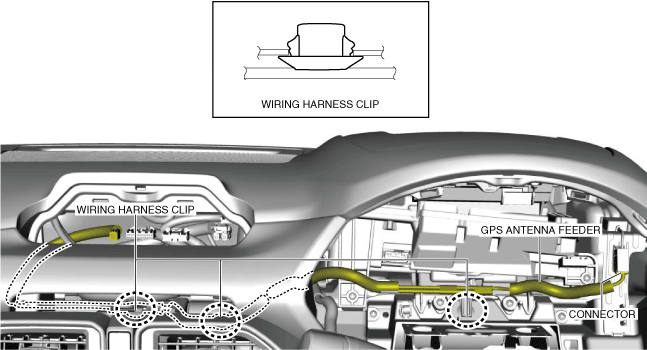

3.  Remove the wiring harness clips at the positions shown in the figure.

ac5wzw00009290

4.  Remove the GPS antenna feeder.

5.  Install in the reverse order of removal.
