ANTENNA FEEDER NO.1 INSPECTION

id092000812400

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(3)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(6)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(7)  Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)

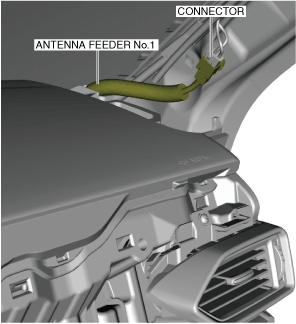

3.  Disconnect antenna feeder No.1.

ac5uuw00007815

4.  Verify that the continuity between antenna feeder No.1 terminals is as indicated in the table.

ac5uuw00005597

•  If not as indicated in the table, replace antenna feeder No.1. (See ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION.)

ac5uuw00005598
