ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION

id092000812200

L.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(3)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(6)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(7)  Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

ac5uuw00005523

4.  Remove the wiring harness clips A and wiring harness clips B.

ac5wzw00010501

5.  Remove the antenna feeder No.1.

6.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(5)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(6)  Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)

(7)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(8)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(9)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(10)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(11)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

ac5wzw00009588

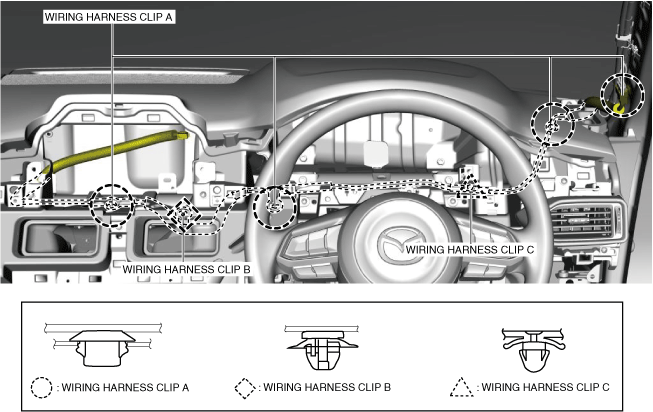

4.  Remove the wiring harness clips A, wiring harness clip B and wiring harness clip C.

ac5wzw00009589

5.  Remove the antenna feeder No.1.

6.  Install in the reverse order of removal.
