REAR MOUNT CAMERA REMOVAL/INSTALLATION

id092000814900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Power liftgate (PLG) rear switch (with power liftgate (PLG)) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION.)

(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(6)  Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

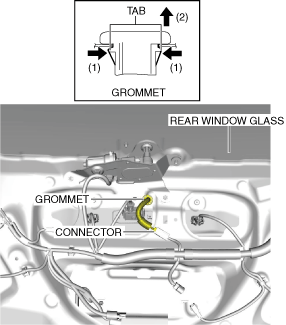

4.  While pressing the grommet tabs in the direction of arrows (1) shown in the figure, pull the grommet in the direction of arrow (2) shown in the figure, and disengage the tabs from the liftgate.

ac5uuw00006619

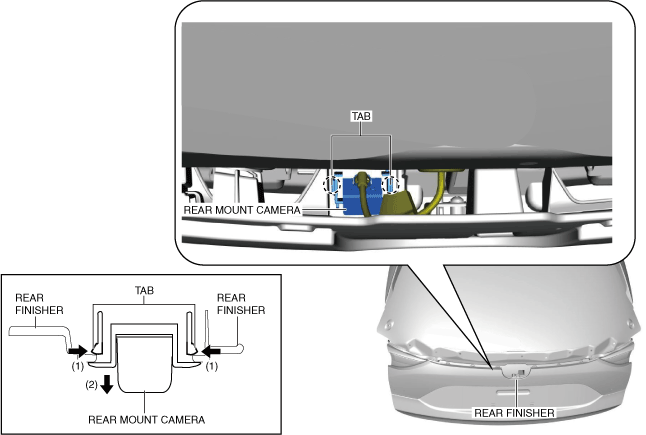

5.  While pressing the rear mount camera tabs in the direction of arrows (1) shown in the figure, pull the rear mount camera in the direction of arrow (2) shown in the figure, and disengage the tabs from the rear finisher.

ac5uuw00006620

6.  Remove the rear mount camera.

7.  Install in the reverse order of removal.

8.  If the rear mount camera is replaced, perform the parking assist system initialization (calibration). (Type displaying predicted vehicle track) (See PARKING ASSIST SYSTEM INITIALIZATION (CALIBRATION).)

9.  Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
