FRONT ACCESSORY SOCKET INSPECTION
id092100900800
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts.
- (1) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
-
- (2) Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION.)
-
- (3) Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
-
- (4) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
-
- (5) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
-
- (6) Front accessory socket (See FRONT ACCESSORY SOCKET REMOVAL/INSTALLATION.)
-

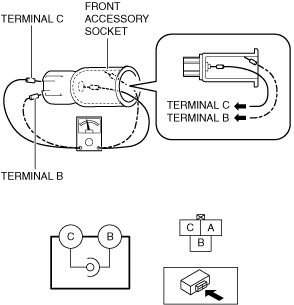

3. Connect the tester probe to the position shown in the figure and verify that there is continuity.
-
