FUEL GAUGE SENDER UNIT INSPECTION [4WD]

id0922000121b3

SKYACTIV-G 2.0, SKYACTIV-G 2.5, SKYACTIV-G 2.5T (R.H.D.)

Fuel gauge sender unit (main)

Note

•  For the fuel gauge sender unit removal/installation, refer to the fuel pump removal/installation because the fuel gauge sender unit is integrated with the fuel pump. (See FUEL PUMP UNIT REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

1.  Verify that the resistance at fuel gauge sender unit (main) terminals A and C is as follows according to the height of the float.

Resistance when float is in the highest position

•  18.5—21.5 ohms

Resistance when float is in the lowest position

•  197—203 ohms

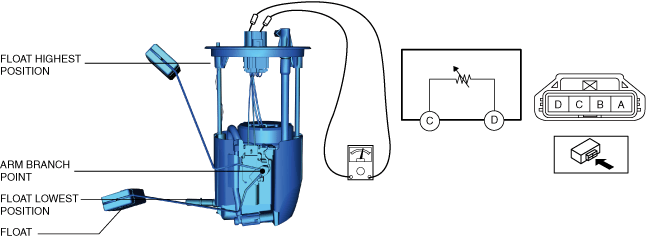

ac5wzw00010257

•  If not as indicated in the table, replace the fuel gauge sender unit (main). (See FUEL GAUGE SENDER UNIT INSPECTION [4WD].)

Fuel gauge sender unit (sub)

1.  Perform the "Fuel Line Safety Procedure" referring to the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

2.  If the fuel gauge level indicates 3/4 or more, refer to the "FUEL DRAINING PROCEDURE" and drain the fuel. (See FUEL DRAINING PROCEDURE [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

3.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4.  Remove the following parts:

(1)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

5.  Remove the fuel gauge sender unit (sub). (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [4WD].)

6.  Verify that the resistance at fuel gauge sender unit (sub) terminals A and B is as follows according to the height of the float.

Resistance when float is in the highest position

•  18.5—21.5 ohms

Resistance when float is in the lowest position

•  197—203 ohms

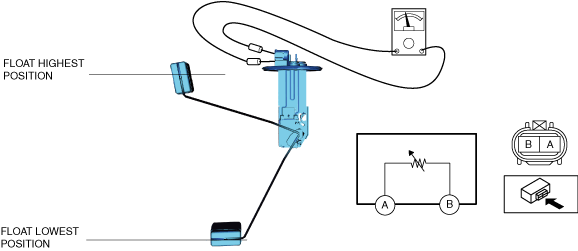

ac5wzw00010258

•  If not as indicated in the table, replace the fuel gauge sender unit (sub). (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [4WD].)

SKYACTIV-D 2.2

Fuel gauge sender unit (main)

1.  Perform the "Fuel Line Safety Procedure" referring to the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION [SKYACTIV-D 2.2].)

2.  If the fuel gauge level indicates 3/4 or more, refer to the "FUEL DRAINING PROCEDURE" and drain the fuel. (See FUEL DRAINING PROCEDURE [SKYACTIV-D 2.2].)

3.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4.  Remove the following parts:

(1)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

5.  Remove the fuel gauge sender unit (main). (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [4WD].)

6.  Verify that the resistance at fuel gauge sender unit (main) terminals A and C is as follows according to the height of the float.

Resistance when float is in the highest position

•  18.5—21.5 ohms

Resistance when float is in the lowest position

•  197—203 ohms

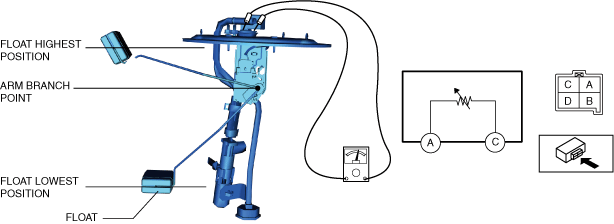

ac5wzw00012920

•  If not as indicated in the table, replace the fuel gauge sender unit (main). (See FUEL GAUGE SENDER UNIT INSPECTION [4WD].)

Fuel gauge sender unit (sub)

1.  Perform the "Fuel Line Safety Procedure" referring to the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION [SKYACTIV-D 2.2].)

2.  If the fuel gauge level indicates 3/4 or more, refer to the "FUEL DRAINING PROCEDURE" and drain the fuel. (See FUEL DRAINING PROCEDURE [SKYACTIV-D 2.2].)

3.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4.  Remove the following parts:

(1)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

5.  Remove the fuel gauge sender unit (sub). (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [4WD].)

6.  Verify that the resistance at fuel gauge sender unit (sub) terminals A and B is as follows according to the height of the float.

Resistance when float is in the highest position

•  18.5—21.5 ohms

Resistance when float is in the lowest position

•  197—203 ohms

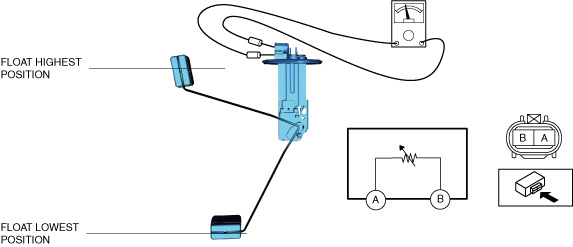

ac5wzw00010260

•  If not as indicated in the table, replace the fuel gauge sender unit (sub). (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [4WD].)
