FRONT ULTRASONIC SENSOR SHORT-CORD INSPECTION

id092200031800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

4.  Remove the front ultrasonic sensor short-cord. (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

ac5wzw00012697

ac5wzw00012698

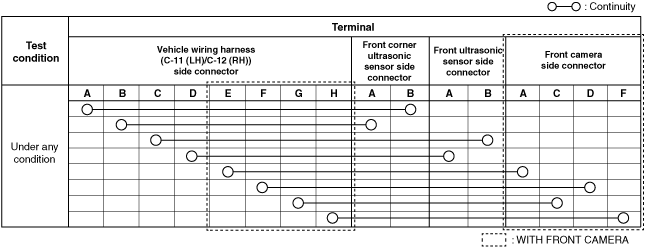

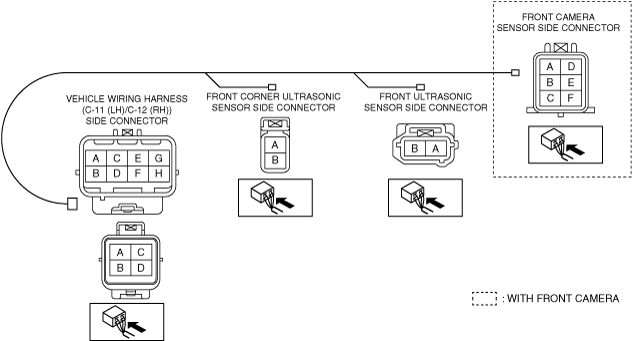

5.  Verify that the continuity between the front ultrasonic sensor short-cord terminals is as indicated in the table.

•  If not as indicated in the table, replace the front ultrasonic sensor short-cord. (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)
