SMART BRAKE SUPPORT (SBS)

id151000003400

Purpose

―  Radar unit (See RADAR UNIT.)

Structural view

ac5wzn00005222

Warning

•  The Smart Brake Support (SBS) performs the brake control (SBS brake), however, it is not a system which guarantees collision prevention under all conditions. Because deceleration by the brake control (SBS brake) is limited, always verify the safety of the surrounding area and keep a safe distance from a vehicle ahead.

•  The Smart Brake Support (SBS) does not operate when the vehicle speed is less than approx. 15 km {9.3 mph} or more. It also does not operate when the vehicle is in reverse.

Caution

•  Always use tires for all wheels that are of the specified size, and the same manufacture, brand, and tread pattern. In addition, do not use tires with significantly different wear patterns on the same vehicle. If such improper tires are used, the Smart Brake Support (SBS) system may not operate normally.

Note

•  The Smart Brake Support (SBS) is a system for assisting driver operations. Accordingly, if the conditions for the Smart Brake Support (SBS) are met, or even when the Smart Brake Support (SBS) is operating, if the driver operates accelerator pedal sharply, the driver’s operations take precedence and the brake control (SBS brake) operation is stopped temporarily.

•  When inspecting the vehicle using a chassis roller or when the vehicle is towed by another vehicle, turn off the Smart Brake Support (SBS) using the steering switch to prevent it from operating incorrectly.

•  In addition, turn off the Smart Brake Support (SBS) when towing another vehicle. Because the movement of the suspensions may be different from that under normal driving conditions, the detection area of the radar sensor may change and the system may operate incorrectly.

Function

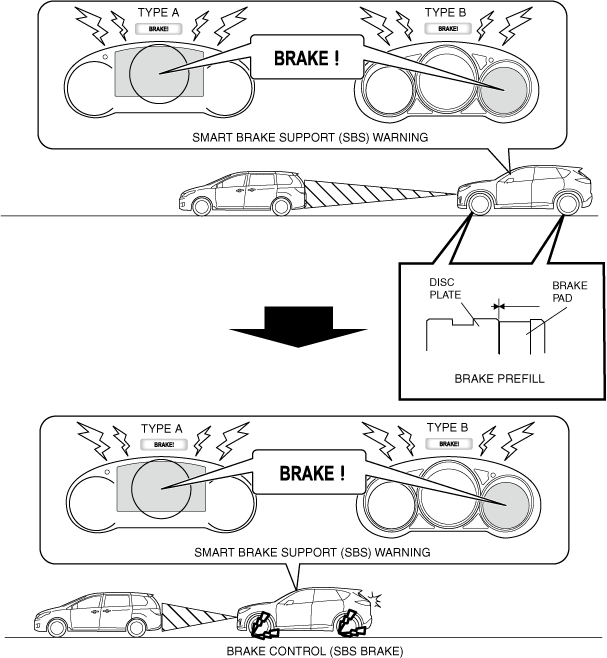

―  Smart Brake Support (SBS) warning which the warning alarm sounds and the warning indication flashes in the multi-information display when the radar unit and Forward Sensing Camera (FSC) detect the possibility of a collision with a vehicle ahead.

―  Brake prefill which reduces the clearance between the brake pads and the disc plate when the radar unit and Forward Sensing Camera (FSC) detect the vehicle approaching a vehicle ahead to enable brake force generation immediately when the brake is operated.

―  Brake control (SBS brake) which operates the automatic brakes when the radar unit and Forward Sensing Camera (FSC) detect the risk of a collision.

ac5uun00004100

―  Smart Brake Support (SBS) display which displays the warning message and the system information in the multi-information display.

Construction

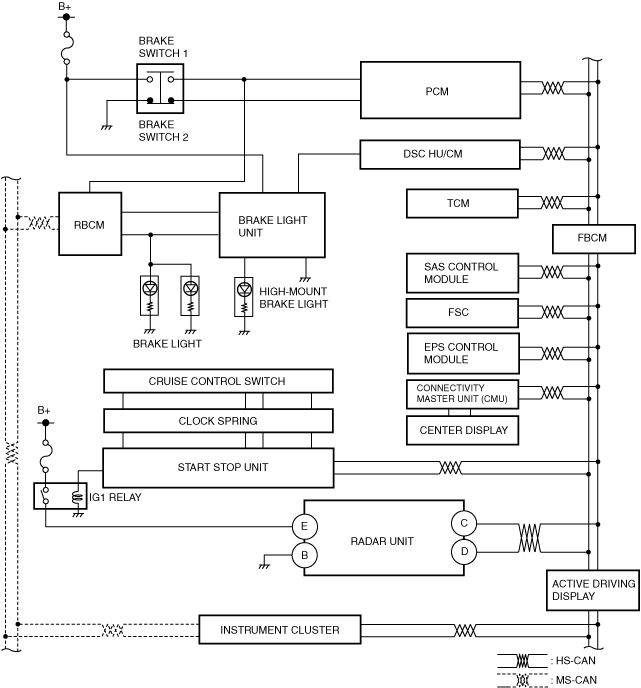

System wiring diagram

ac5wzn00004714

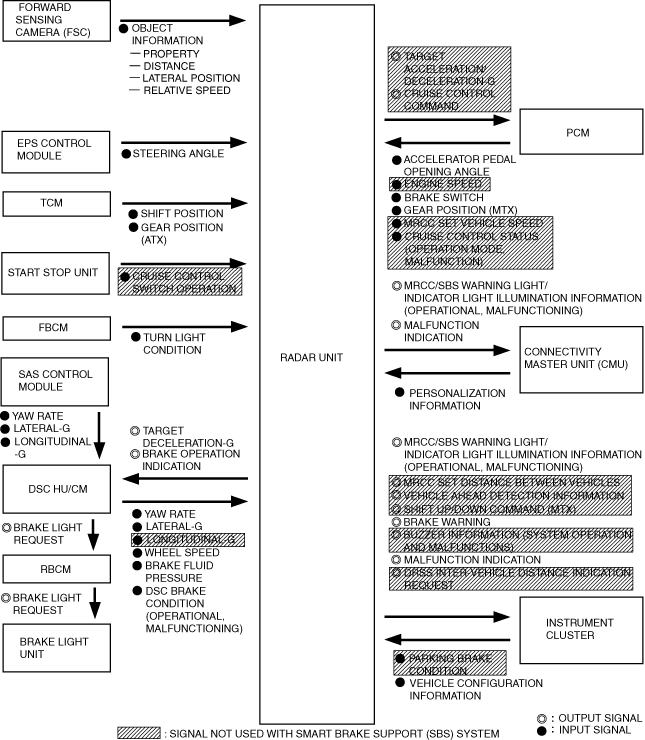

Block diagram

am3zzn00006283

Operation

―  The engine running.

―  The Smart Brake System (SBS) system is not turned off.

―  The vehicle is driven at 15 km/h {9.3 mph} or more.

―  The difference in vehicle speed between the vehicle and the vehicle ahead or the obstruction in front is approx. 15 km/h {9.3 mph} or more.

―  The DSC is not operating.

Note

•  The Smart Brake Support (SBS) system will operate even if the TCS OFF indicator light is illuminated after the TCS is stopped by operating the TCS OFF switch. If the Smart Brake Support (SBS) system operates while the TCS has been stopped, the TCS becomes operational and the TCS OFF indicator light turns off.

•  When the Forward Sensing Camera (FSC) malfunction occurred, the cognitive ability of the Smart Brake Support (SBS) is reduced.

•  The Smart Brake Support (SBS) system may not operate normally under the following conditions:

―  If there is the possibility of hitting only a part of a vehicle or obstruction ahead.

―  If the vehicle is accelerated rapidly and it comes close to a vehicle ahead.

―  The vehicle is driven at the same speed as the vehicle ahead.

―  The accelerator pedal is depressed sharply.

―  The brake pedal is depressed.

―  The steering wheel is being operated.

―  The selector lever is being operated.

―  The direction indicator is being used.

―  When the vehicle ahead is not equipped with taillights or the taillights are turned off at night.

•  For the following types of detectable objects, the radar sensor may detect an obstruction and the Smart Brake Support (SBS) system could operate.

―  Objects on the road at the entrance to a curve (including guardrails and snow banks).

―  Vehicles coming in the opposite lane while making a right turn or rounding a curve.

―  When crossing a narrow bridge.

―  When passing under a low gate or through a tunnel or a narrow gate.

―  When entering an underground parking area.

―  Metal objects, bumps, or protruding objects on the road.

―  The vehicle suddenly come close to a vehicle ahead.

―  When driving in areas where there is high grass or forage.

―  Two-wheeled vehicles such as motor bike or bicycles.

―  Pedestrians, or standing trees or similar objects.

Note

•  The mode does not always change in the order of “Warning/Brake prefill”, “Gentle brake”, and “Main brake”. The warning may be skipped and the braking performed depending on the situation.

Warning mode/Brake prefill operation

Solenoid valve operation table

am3zzn00006284

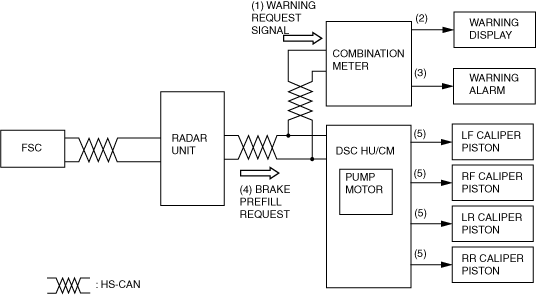

•  When the radar unit and Forward Sensing Camera (FSC) detect that the vehicle is approaching a vehicle ahead or an obstruction in front rapidly and there is the possibility of a collision, the radar unit sends the brake warning request signal (1) to the instrument cluster to indicate the Smart Brake Support (SBS) warning in the display (2) and operate the warning alarm (3) to warn the driver. The radar unit outputs a brake prefill request signal (4) to the DSC HU/CM at the same time.

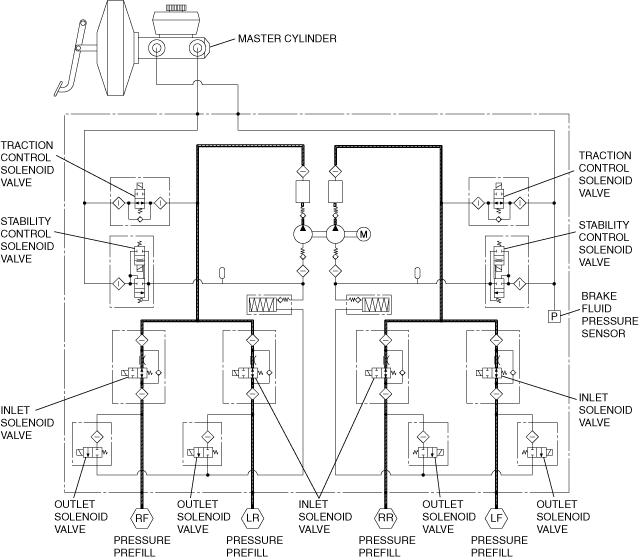

•  The DSC HU/CM operates the pump motor to activate the pump so that the brake fluid pressure is lead to the caliper piston (5) and the brake pads are kept near the disc plate.

am3zzn00004450

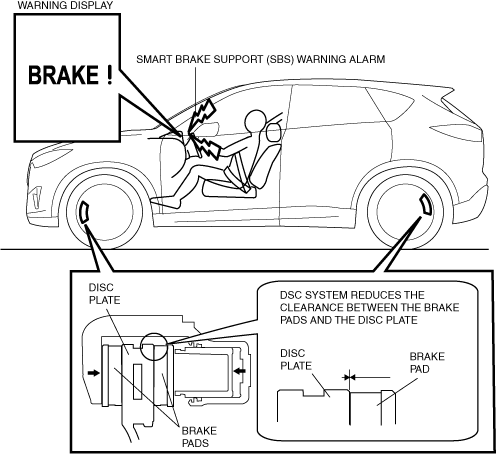

•  As a result, if the driver realizes that he/she is approaching a vehicle ahead and depresses the brake pedal, or if the driver does not perform an avoidance maneuver and the automatic brakes are operated, the brake force is generated immediately and the braking distance is reduced.

ac9uun00002509

Gentle brake mode/Main brake mode operation

valve operation table

am3zzn00006501

•  If the driver does not perform an avoidance maneuver under a warning mode condition and the vehicle further approaches the vehicle ahead or the obstruction in front, the mode changes to the gentle brake mode.

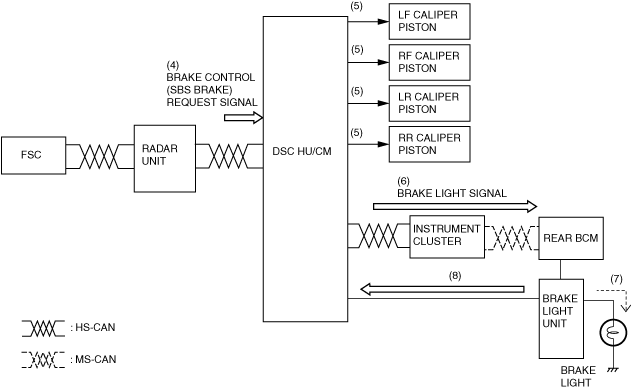

•  While the brake control (SBS brake) is performed, a brake light signal (6) is output from the DSC HU/CM to the rear body control module and the brake lights are turned on automatically.

•  Same as the warning mode, the Smart Brake Support (SBS) warning is indicated in the display and the warning alarm is operated to warn the driver.

Gentle brake mode

•  Based on the information regarding the distance and difference in vehicle speed with a vehicle ahead, the radar unit outputs a gentle brake and deceleration request signal to the DSC HU/CM, and the DSC HU/CM increases the brake fluid pressure to operate the brakes according to the deceleration level requested by the gentle brake and deceleration request signal.

am3zzn00004452

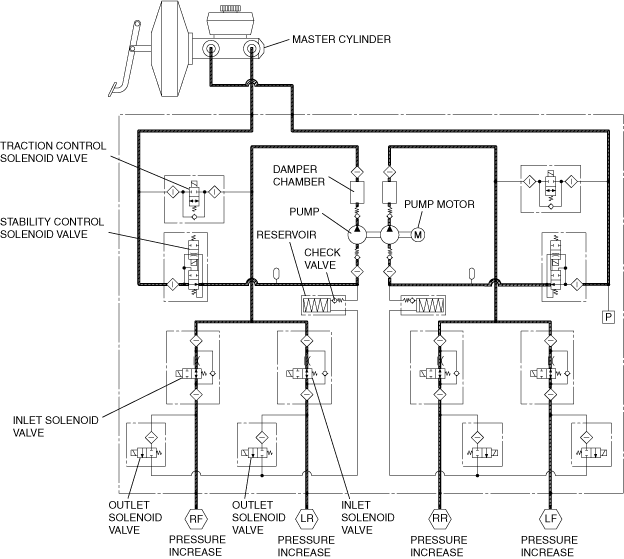

•  When the DSC HU/CM receives a gentle brake and deceleration request signal, it energizes the traction control and the stability control solenoid valves to switch the hydraulic pressure circuit and increase the brake fluid pressure. As a result, gentle braking is performed.

ac9uun00002253

Main brake mode

•  From gentle brake mode condition, if the vehicle further approaches the vehicle ahead and the system determines that avoiding a collision is difficult, the mode changes to the main brake mode. The mode may change directly to the main brake mode without entering the gentle brake mode.

•  Same as the gentle brake mode, the radar unit outputs a main brake and deceleration request signal to the DSC HU/CM. In this mode, the requested deceleration level is greater than that of the gentle brake mode.

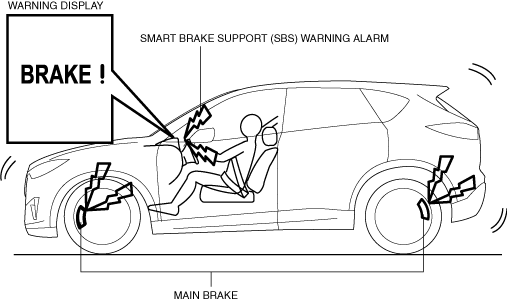

•  The DSC HU/CM increases the pump motor output according to the deceleration level requested by the main brake and deceleration request signal, and increases the brake fluid pressure more than in the gentle brake mode to generate a greater brake force.

ac9uun00002254

Smart Brake Support (SBS) display

•   The Smart Brake Support (SBS) display which displays in the multi-information display is as follows:

Note

•  A warning message in the center display and multi-information display are displayed. For the message content and verification method of the center display, refer to the CENTER DISPLAY. (See CENTER DISPLAY [WITH CENTER DISPLAY].)

Smart Brake Support (SBS) display table

Smart Brake Support (SBS) operating condition		Content	Smart Brake Support (SBS) OFF indicator light	Active driving display (With auto flip-up type)	Active driving display (With windshield type)	Multi-information display
Disable	After switch the ignition ON (engine off or on)	Smart Brake Support (SBS) system is disabled	illuminated	Not displayed	Not displayed	Not displayed
Enable		Smart Brake Support (SBS) system is activated	Not illuminated/Not flashed	Not displayed	Not displayed	Not displayed
	When there is the possibility of a collision with a vehicle ahead or an obstruction	Smart Brake Support (SBS) warning/Brake control (SBS brake) is in operation	Not illuminated/Not flashed
	When a malfunction occurred in the Smart Brake Support (SBS) system	The Smart Brake Support (SBS) system malfunction is occurred	Not illuminated/Not flashed	Not displayed	Not displayed

Note

•  If the Smart Brake Support (SBS) system operation is turned off, the Smart City Brake Support (SCBS) system operation is turned off simultaneously.
