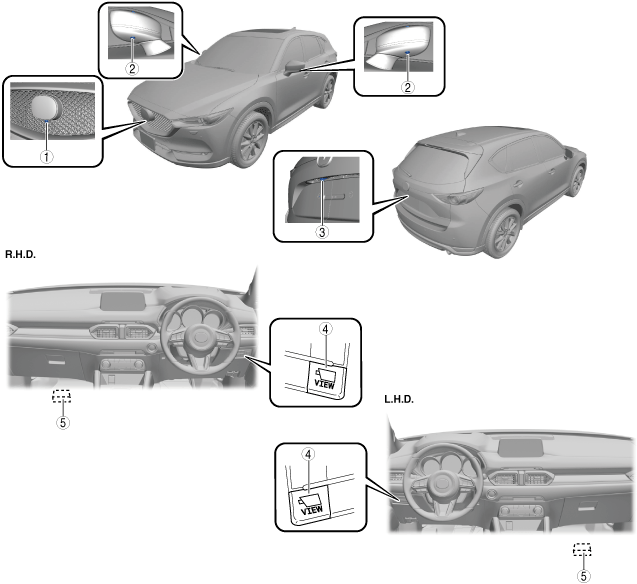

360°VIEW MONITOR SYSTEM LOCATION INDEX

id152000007300

ac5wzw00011913

1	Front camera (See FRONT CAMERA REMOVAL/INSTALLATION.) (See FRONT CAMERA INSPECTION.) (See 360°VIEW MONITOR SYSTEM AIMING.)
2	Side camera (See SIDE CAMERA REMOVAL/INSTALLATION.) (See SIDE CAMERA INSPECTION.) (See 360°VIEW MONITOR SYSTEM AIMING.)
3	Rear mount camera (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.) (See REAR MOUNT CAMERA INSPECTION.) (See 360°VIEW MONITOR SYSTEM AIMING.)
4	360°view monitor switch (See 360°VIEW MONITOR SWITCH REMOVAL/INSTALLATION.) (See 360°VIEW MONITOR SWITCH INSPECTION.)
5	360°view monitor control module (See 360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION.) (See 360°VIEW MONITOR CONTROL MODULE INSPECTION.) (See 360°VIEW MONITOR SYSTEM AIMING.)
