EMISSION SYSTEM [SKYACTIV-D 2.2]

id0116e1110100

Outline

• Diesel particulate elimination equipment (Diesel Particulate Filter (DPF) has been adopted which eliminates PM from the exhaust gas.

Structural View

Engine compartment side

ac5wzn00002250

Exhaust system side

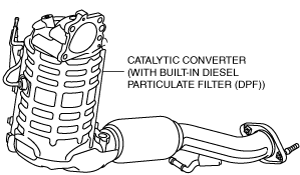

2WD

ac5wzn00002251

4WD

ac5wzn00002252

Fuel tank side

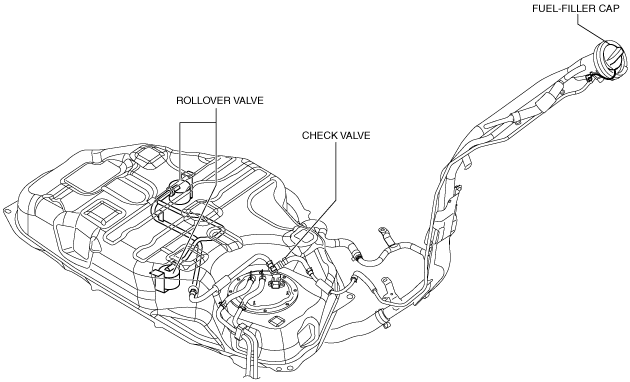

2WD

ac5wzn00002253

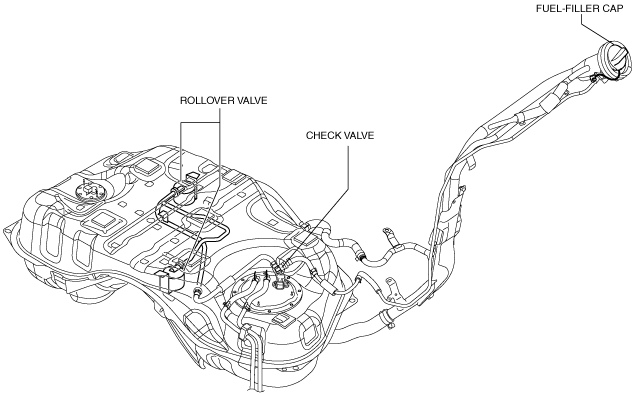

4WD

ac5wzn00002254

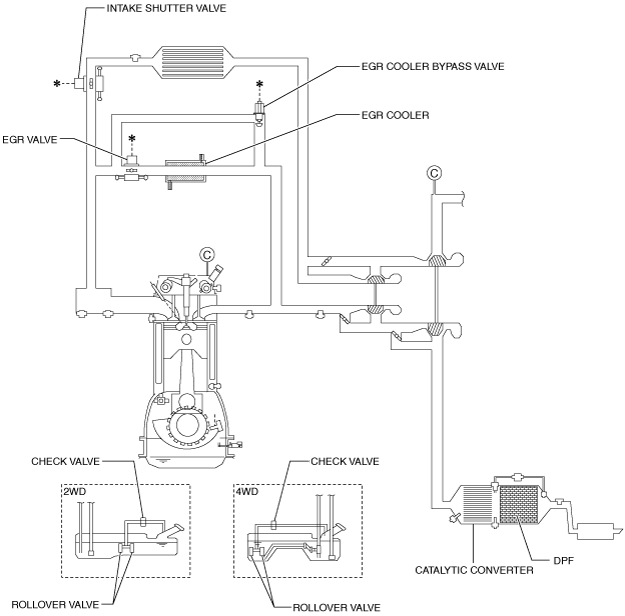

System Diagram

ac5wzn00002255

Vacuum Hose Routing Diagram

ac5wzn00002894

Structure

• The emission system consists of the following parts:

Part/System name		Reference
Exhaust gas purification system (See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-D 2.2].)	Catalytic converter	(See CATALYTIC CONVERTER [SKYACTIV-D 2.2].)
Exhaust gas recirculation system (See EXHAUST GAS RECIRCULATION SYSTEM [SKYACTIV-D 2.2].)	EGR valve	(See EGR VALVE [SKYACTIV-D 2.2].)
	EGR cooler	(See EGR COOLER [SKYACTIV-D 2.2].)
	EGR cooler bypass valve	(See EGR COOLER BYPASS VALVE [SKYACTIV-D 2.2].)
Fuel-filler cap		(See FUEL-FILLER CAP [SKYACTIV-D 2.2].)
Rollover valve		(See ROLLOVER VALVE [SKYACTIV-D 2.2].)
Check valve		(See CHECK VALVE [SKYACTIV-D 2.2].)
Diesel particulate filter (DPF)		(See DIESEL PARTICULATE FILTER [SKYACTIV-D 2.2].)
Intake shutter valve		(See INTAKE SHUTTER VALVE [SKYACTIV-D 2.2].)
