AIR FUEL RATIO (A/F) SENSOR INSPECTION [SKYACTIV-D 2.2]

id0140z7899600

A/F Sensor Inspection

1.  Connect the M-MDS to the DLC-2.

2.  Start the engine and warm it up completely.

3.  Access the following PIDs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [SKYACTIV-D 2.2].)

•  VSS (Vehicle speed)

•  RPM (Engine speed)

•  O2S11 (A/F sensor output current)

4.  Drive the vehicle and decelerate the engine speed by releasing the accelerator pedal fully when the engine speed is 3,000 rpm or more.

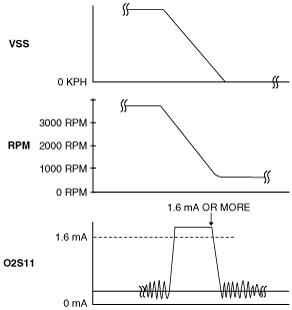

5.  Verify that the A/F sensor output current (PID: O2S11) is 1.6 mA or more while decelerating as shown in the figure.

ac5wzw00007146

•  If not as verified, replace the A/F sensor. (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

A/F Sensor Heater Inspection

Warning

•  A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

Caution

•  Do not allow flammable objects such as the taping for bundling a wiring harness to come into contact with the catalytic converter.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Lift up the vehicle.

3.  Remove the following parts:

(1)  Front under cover No.2 (2WD) (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

(2)  Splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(3)  Seal rubber (No.1) and noise suppression cover (No.1) (See TIMING CHAIN REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

4.  Disconnect the A/F sensor connector.

5.  Measure the resistance between A/F sensor terminals C and D.

ac5wzw00006439

•  If not as specified, replace the A/F sensor. (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
