BLOWER UNIT REMOVAL/INSTALLATION

id071100800500

L.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(4)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(7)  Passenger-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(8)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the blower motor connector.

ac5wzw00007322

4.  Disconnect the air intake actuator connector.

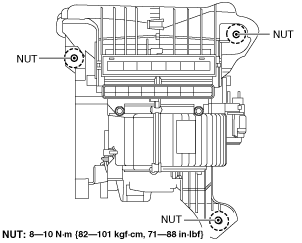

5.  Remove the blower unit installation nuts.

ac5wzw00007323

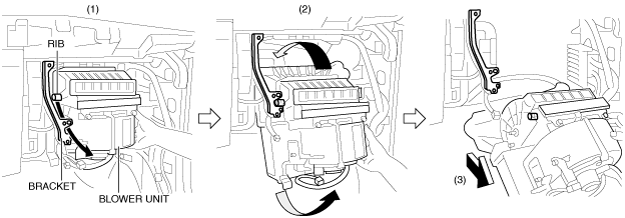

6.  Pass the blower unit projection between the brackets shown in the figure (1) and rotate the blower unit (2).

ac5wzw00001792

7.  Pull out the blower unit in the direction of the arrow (3).

8.  Remove the blower unit.

ac5wzw00001793

9.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(4)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(7)  Passenger-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(8)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

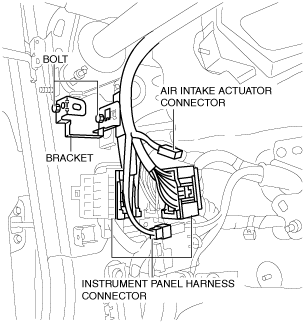

3.  Disconnect the air intake actuator connector.

ac5wzw00001794

4.  Disconnect the instrument panel harness connector.

5.  Remove the bolt, then remove the instrument panel harness bracket.

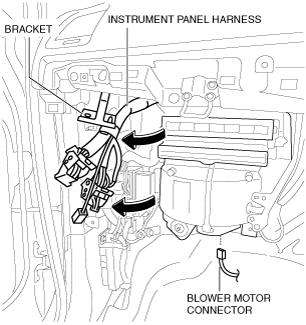

6.  Set the instrument panel harness connector and bracket out of the way as shown in the figure.

ac5wzw00007324

7.  Disconnect the blower motor connector.

8.  Remove the blower unit installation nuts.

ac5wzw00007325

9.  Remove the blower unit.

ac5wzw00001797

10.  Install in the reverse order of removal.
