REAR HEAT DUCT REMOVAL/INSTALLATION
id071100800900
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
2. Remove the following parts:
- (1) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
- (2) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
- (3) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
- (4) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (5) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R, C66MX-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)
- (6) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
- (7) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
- (8) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (9) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
- (10) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (11) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (12) Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
3. Turn the floor covering over.

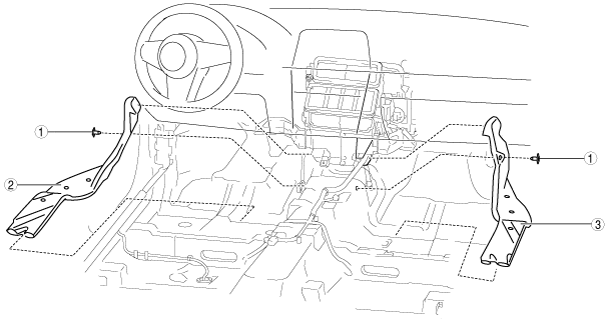

4. Remove in the order indicated in the table.
|
1
|
Fastener
|
|
2
|
Rear heat duct (1)
|
|
3
|
Rear heat duct (2)
|
5. Install in the reverse order of removal.
