CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1807800

L.H.D.

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2. Remove the following parts:

(1) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3) Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION.)

(4) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(5) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(7) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R, C66MX-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(8) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(9) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(10) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(11) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(12) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(13) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(14) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

3. Remove the aspirator. (See Aspirator removal note.)

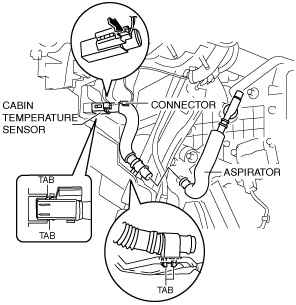

ac5wzw00001878

4. Remove the screw.

5. Disconnect the connector.

ac5wzw00001879

6. Remove the cabin temperature sensor.

7. Install in the reverse order of removal.

Aspirator removal note

1. Remove the aspirator as shown in the figure.

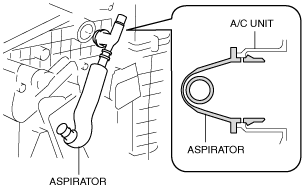

ac5wzw00001882
