REAR SEAT BELT REMOVAL/INSTALLATION

id081100800800

Caution

•  If the retractor is disassembled, it will not operate correctly due to looseness and excessive play of the internal parts, therefore, do not disassemble the retractor.

1.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(4)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(6)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Remove the bolts.

ac5wzw00002068

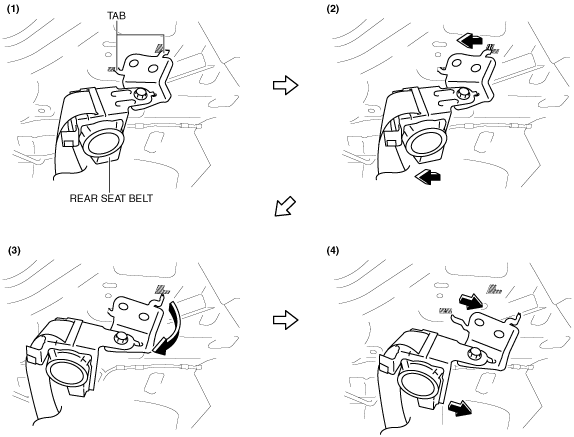

3.  Remove the tab as shown in the figure.

ac5wzw00007392

4.  Remove the rear seat belt.

5.  Install in the reverse order of removal.
