SIDE TURN LIGHT INSPECTION

id091800811600

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Outer mirror glass (See OUTER MIRROR GLASS REMOVAL.)

(2)  Outer mirror garnish (upper side) (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION.)

(3)  Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION.)

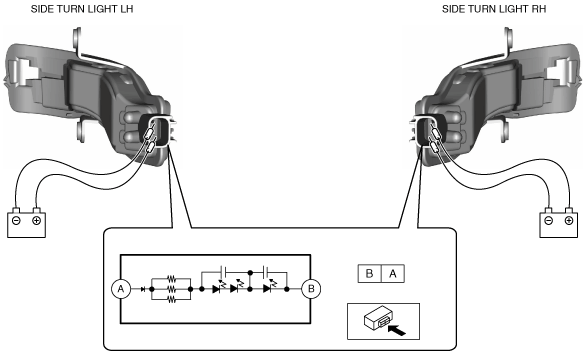

3.  Apply battery voltage to side turn light terminal A, and connect terminal B to ground.

ac5wzw00007441

4.  Verify that the LED illuminates.

•  If the LED illuminates, go to the next step.

•  If the LED does not illuminate, replace the side turn light. (See SIDE TURN LIGHT REMOVAL/INSTALLATION.)

5.  Remove the following parts:

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Power outer mirror connector (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)

6.  Verify that the continuity between the side turn light terminals from the power outer mirror is as indicated in the table.

ac5wzw00000108

ac5wzw00000471

•  If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)
