D-PILLAR SPEAKER INSPECTION

id092000811200

D-pillar speaker

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(2)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(5)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the D-pillar speaker connector. (See D-PILLAR SPEAKER REMOVAL/INSTALLATION.)

4.  Verify that the resistance between the D-pillar speaker terminals is as indicated in the table.

am6zzw00001612

•  If not as indicated in the table, replace the D-pillar speaker.

ac5uuw00002877

Short-cord

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(2)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(5)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the D-pillar speaker connector. (See D-PILLAR SPEAKER REMOVAL/INSTALLATION.)

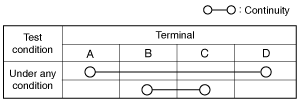

4.  Verify that the continuity between the short-cord terminals is as indicated in the table.

ac5jjw00001036

•  If not as indicated in the table, replace the short-cord.

ac5wzw00005159
