GPS ANTENNA FEEDER REMOVAL/INSTALLATION

id092000812100

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(4)  Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(5)  GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)

(6)  Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION.)

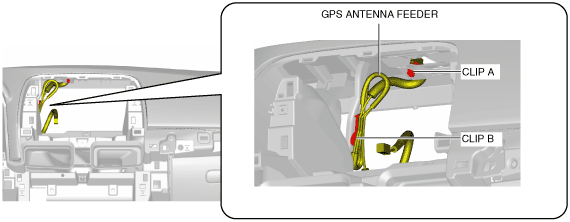

3.  Remove clips A and B in the position shown in the figure.

ac5wzw00007706

4.  Remove the GPS antenna feeder.

5.  Install in the reverse order of removal.
