ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION
id092000812200
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
2. Remove the following parts:
- (1) Side speaker grille (RH) (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
- (2) Tweeter (RH) (See TWEETER REMOVAL/INSTALLATION.)
- (3) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (4) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (5) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (6) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
- (7) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
- (8) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
- (9) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
- (10) Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)
- (11) Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)
3. Disconnect the connector.

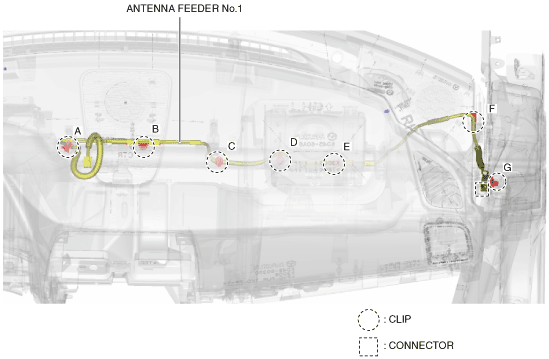

4. Remove clips A, B, C, D, E, F, and G.
5. Remove antenna feeder No.1.
6. Install in the reverse order of removal.
