ANTENNA FEEDER NO.2 INSPECTION

id092000812500


Without center display

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(4)  Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(5)  Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(6)  D-pillar trim (RH) (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Disconnect antenna feeder No.1.

ac5jjw00000620

4.  Disconnect antenna feeder No.3.

ac5wzw00007846

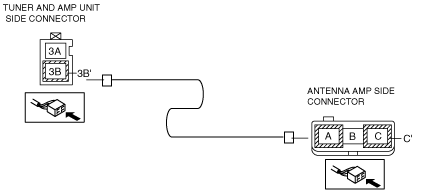

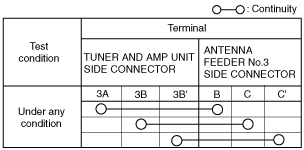

5.  Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.

ac5wzw00007847

•  If not as indicated in the table, replace antenna feeder No.2.
ac5wzw00007848


With center display

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(4)  Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(5)  Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(6)  D-pillar trim (RH) (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

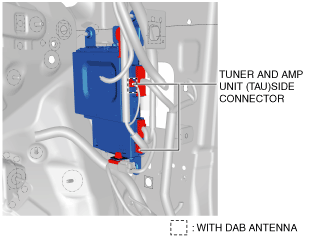

3.  Disconnect tuner and amp unit (TAU) connector.

ac5wzw00007849

4.  Disconnect antenna feeder No.3.

ac5wzw00007846

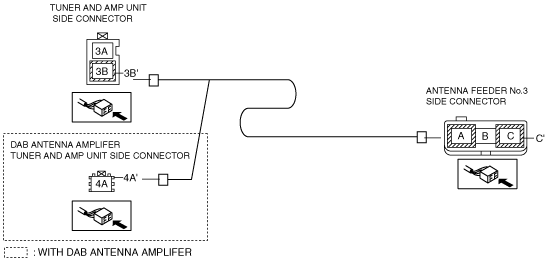

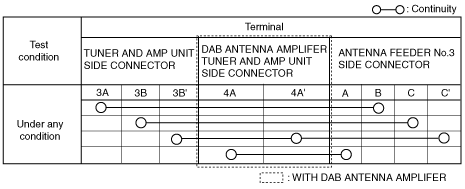

5.  Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.

ac5wzw00008345

•  If not as indicated in the table, replace antenna feeder No.2.
ac5wzw00008346
