FUEL GAUGE SENDER UNIT INSPECTION [4WD]

id092200012102

SKYACTIV-G 2.0, SKYACTIV-G 2.5

Fuel gauge sender unit (main)

Note

•  For the fuel gauge sender unit removal/installation, refer to the fuel pump removal/installation because the fuel gauge sender unit is integrated with the fuel pump. (See FUEL PUMP UNIT REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

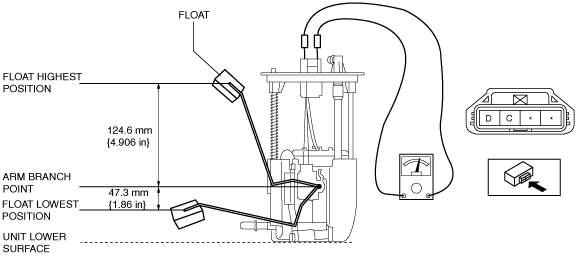

1.  Verify that the resistance at fuel gauge sender unit (main) terminals D and C is as indicated in the table according to the height of the float.

ac5wzw00003777

ac5wzw00003778

•  If not as indicated in the table, replace the fuel gauge sender unit (main).

Fuel gauge sender unit (sub)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the following parts:

(1)  Rear seat cushion (6:4 split-type seat) (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear seat under installation bolt (4:2:4 split-type seat) (See REAR SEAT REMOVAL/INSTALLATION.)

(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Fuel gauge sender unit (sub). (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [4WD].)

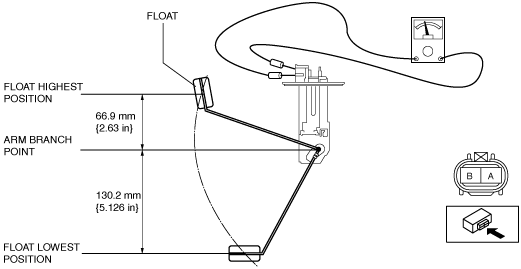

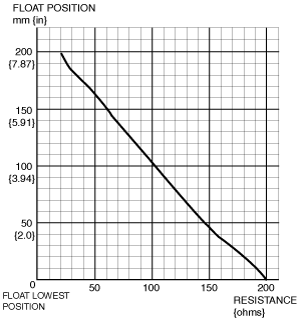

3.  Verify that the resistance at fuel gauge sender unit (sub) terminals B and A is as indicated in the table according to the height of the float.

ac5wzw00003779

ac5wzw00003780

•  If not as indicated in the table, replace the fuel gauge sender unit (sub).

SKYACTIV-D 2.2

Fuel gauge sender unit (main)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Rear seat cushion (6:4 split-type seat) (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear seat under installation bolt (4:2:4 split-type seat) (See REAR SEAT REMOVAL/INSTALLATION.)

(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Fuel gauge sender unit (main). (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [4WD].)

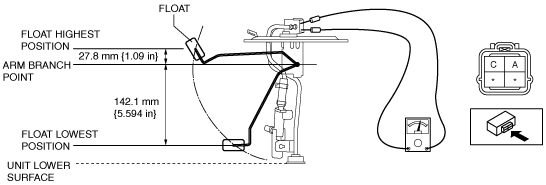

3.  Verify that the resistance at fuel gauge sender unit (main) terminals A and C is as indicated in the table according to the height of the float.

ac5wzw00003263

ac5wzw00003781

•  If not as indicated in the table, replace the fuel gauge sender unit (main).

Fuel gauge sender unit (sub)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Rear seat cushion (6:4 split-type seat) (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear seat under installation bolt (4:2:4 split-type seat) (See REAR SEAT REMOVAL/INSTALLATION.)

(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Fuel gauge sender unit (sub). (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [4WD].)

3.  Verify that the resistance at fuel gauge sender unit (sub) terminals B and A is as indicated in the table according to the height of the float.

ac5wzw00003779

ac5wzw00003780

•  If not as indicated in the table, replace the fuel gauge sender unit (sub).
