TEL ANTENNA REMOVAL/INSTALLATION

id092200666300

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(4)  Audio unit (without center display)(See AUDIO UNIT REMOVAL/INSTALLATION.)

(5)  Center display (with center display)(See CENTER DISPLAY REMOVAL/INSTALLATION.)

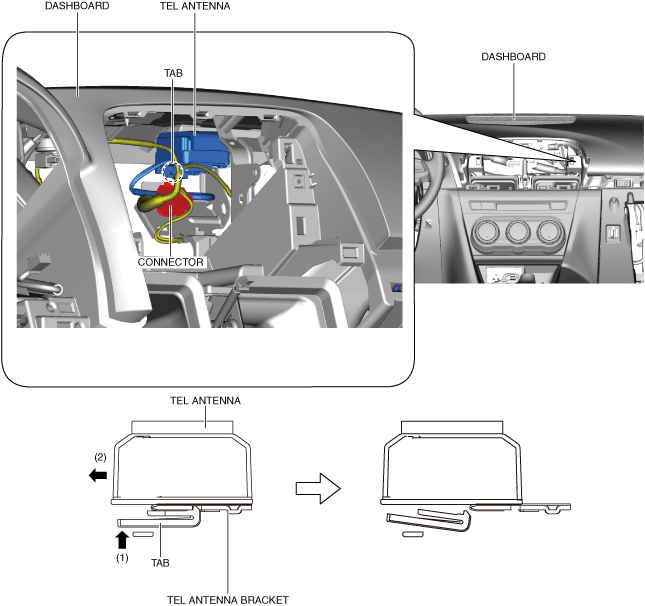

3.  Move the tel antenna in the direction of arrow (2) shown in the figure while pressing the tab in the direction of arrow (1) .

ac5wzw00011890

4.  Remove the connector from the tel antenna bracket.

5.  Disconnect the connector and remove the tel antenna.

6.  Install in the reverse order of removal.
