INTAKE-AIR SYSTEM LOCATION INDEX [SKYACTIV-D 2.2]

id0113z7801700

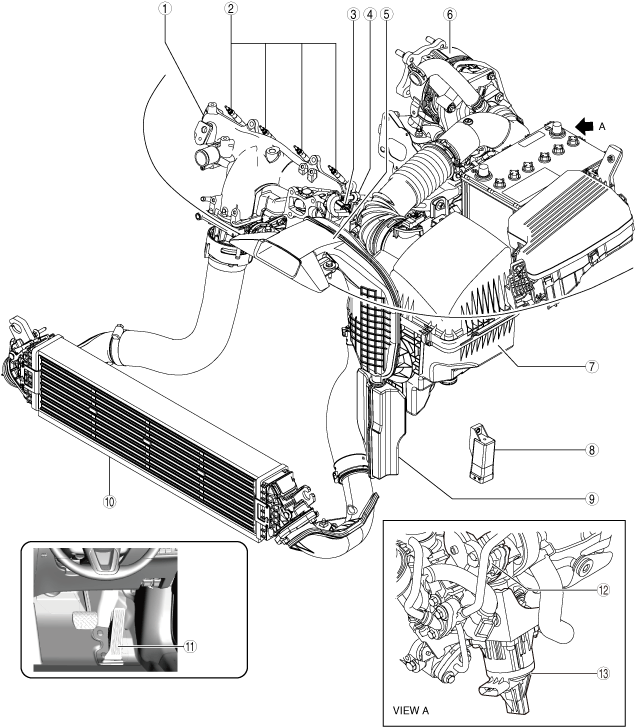

ac5wzw00014603

1	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
2	Glow plug (See GLOW PLUG REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See GLOW PLUG INSPECTION [SKYACTIV-D 2.2].)
3	Compressor bypass solenoid valve (See COMPRESSOR BYPASS SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See COMPRESSOR BYPASS SOLENOID VALVE INSPECTION [SKYACTIV-D 2.2].)
4	Check valve (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See CHECK VALVE INSPECTION [SKYACTIV-D 2.2].)
5	Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
6	Turbocharger (See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See TURBOCHARGER INSPECTION [SKYACTIV-D 2.2].)
7	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See AIR CLEANER ELEMENT INSPECTION [SKYACTIV-D 2.2].)
8	Glow control module (See GLOW PLUG CONTROL MODULE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See GLOW PLUG CONTROL MODULE INSPECTION [SKYACTIV-D 2.2].)
9	Resonance chamber (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
10	Charge air cooler (See CHARGE AIR COOLER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See CHARGE AIR COOLER INSPECTION [SKYACTIV-D 2.2].)
11	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
12	Variable turbine geometry turbocharger actuator (See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See VARIABLE TURBINE GEOMETRY TURBOCHARGER ACTUATOR INSPECTION [SKYACTIV-D 2.2].)
13	Regulating valve actuator (See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See REGULATING VALVE ACTUATOR INSPECTION [SKYACTIV-D 2.2].)
