CONTROL SYSTEM COMPONENT LOCATION INDEX [L3 Turbo]

CONTROL SYSTEM COMPONENT LOCATION INDEX [L3 Turbo]

id0140b6800200

acxaaw00000694

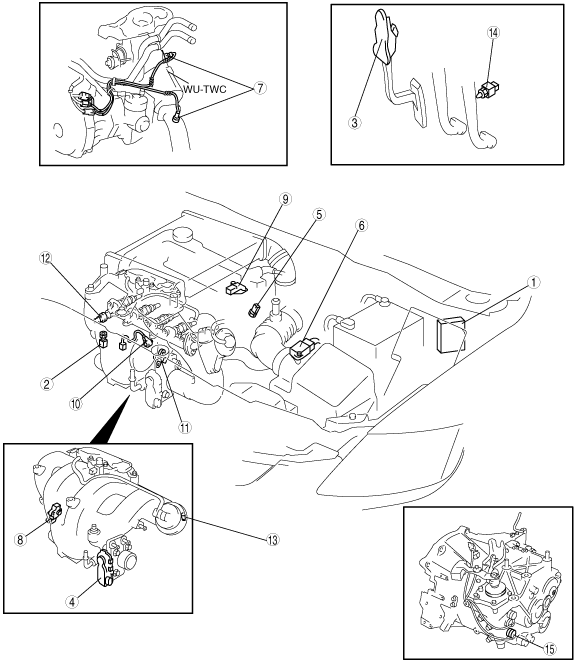

1

PCM (Built-in BARO sensor)

(See PCM REMOVAL/INSTALLATION [L3 Turbo].)

(See PCM INSPECTION [L3 Turbo].)

(See PCM CONFIGURATION [L3 Turbo].)

(See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [L3 Turbo].)

2

PSP switch

(See POWER STEERING PRESSURE (PSP) SWITCH INSPECTION [L3 Turbo].)

3

APP sensor

(See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [L3 Turbo].)

4

TP sensor

(See THROTTLE POSITION (TP) SENSOR INSPECTION [L3 Turbo].)

5

ECT sensor

(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [L3 Turbo].)

(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [L3 Turbo].)

6

MAF/IAT sensor

(See MASS AIR FLOW (MAF) SENSOR INSPECTION [L3 Turbo].)

(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [L3 Turbo].)

7

HO2S

(See AIR FUEL RATIO (A/F) SENSOR, HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [L3 Turbo].)

(See AIR FUEL RATIO (A/F) SENSOR, HEATED OXYGEN SENSOR (HO2S) INSPECTION [L3 Turbo].)

8

MAP/boost air temperature sensor

(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [L3 Turbo].)

(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [L3 Turbo].)

(See BOOST AIR TEMPERATURE SENSOR INSPECTION [L3 Turbo].)

9

CMP sensor

(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [L3 Turbo].)

(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [L3 Turbo].)

10

KS

(See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [L3 Turbo].)

(See KNOCK SENSOR (KS) INSPECTION [L3 Turbo].)

11

CKP sensor

(See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [L3 Turbo].)

(See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [L3 Turbo].)

12

Fuel pressure sensor

(See FUEL PRESSURE SENSOR REMOVAL/INSTALLATION [L3 Turbo].)

(See FUEL PRESSURE SENSOR INSPECTION [L3 Turbo].)

13

Variable swirl shutter valve switch

(See VARIABLE SWIRL SHUTTER VALVE SWITCH INSPECTION [L3 Turbo].)

14

CPP switch (MTX)

(See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [L3 Turbo].)

15

Neutral switch (MTX)

(See NEUTRAL SWITCH INSPECTION [L3 Turbo].)
