REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [2WD]

id0415008001a1

1. Remove the rear seat. (See REAR SEAT REMOVAL/INSTALLATION.)

3. Remove the sub trunk box. (See SUB TRUNK BOX REMOVAL/INSTALLATION.)

4. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)

5. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

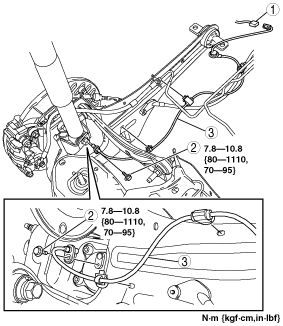

6. Remove in the order indicated in the table.

acxuuw00001876

1

Rear ABS wheel-speed sensor connector

2

Bolt

3

Rear ABS wheel-speed sensor

7. Install in the reverse order of removal.

1	Rear ABS wheel-speed sensor connector
2	Bolt
3	Rear ABS wheel-speed sensor
