COMBINED SENSOR REMOVAL/INSTALLATION [MTX]

id041500801210

Warning

•  Unless the initialization procedure of the combined sensor is completed, the DSC will not operate, causing an unexpected accident. Therefore, always perform the initialization procedure to ensure DSC operation if the combined sensor and DSC HU/CM have been removed or replaced.

Caution

•  The internal parts of the combined sensor could be damaged if dropped. Be careful not to drop the combined sensor. Replace the combined sensor if it is subjected to an impact. Also, do not use an impact wrench or other similar air tools when removing/installing the sensor.

1.  Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION.)

2.  Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)

3.  Remove the parking brake lever. (See PARKING BRAKE REMOVAL/INSTALLATION [MTX].)

4.  Remove the parking brake lever bracket. (See PARKING BRAKE REMOVAL/INSTALLATION [MTX].)

5.  Remove in the order indicated in the table.

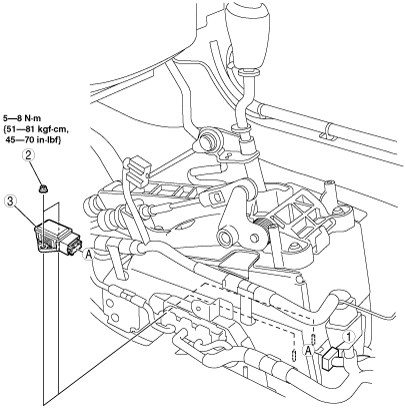

acxaaw00000778

1	Combined sensor connector
2	Nut
3	Combined sensor

6.  Install in the reverse order of removal.

7.  After installation, perform the combined sensor initialization procedure. (See COMBINED SENSOR INITIALIZATION PROCEDURE.)
